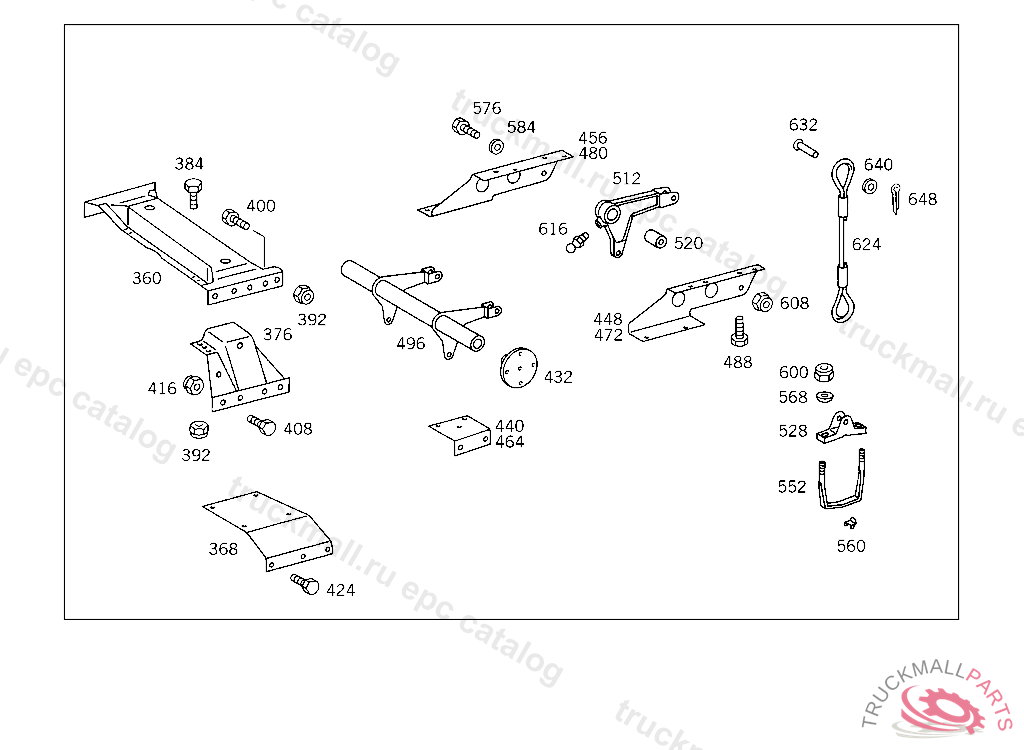

Поз.
Артикул
Описание
360
CROSS MEMBER STEERED AXLE
360
CROSS MEMBER STEERED AXLE
360
CROSS MEMBERNO.3A
368
STRUT RIGHT
368
STRUT LEFT
376
STRUT LEFT AND RIGHT
384
SCREWM 14X14X18X32
384
SCREW , Replaced By: A3229903101
392
NUT , Replaced By: N910113014000
392
NUT STEERING SUPPORT TO FRAME
400
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
400
SCREW , Replaced By: N308676014003
408
SCREW , Replaced By: N308676016004
408
SCREW SUPPORT TO SIDE MEMBER M14X40
408
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
408
NUT PARTICLE FILTER M14
416
NUT CONSOLE TO SUPPORT
416
NUT , Replaced By: N910113016001
424
SCREW , Replaced By: N308676014008
424
SCREW MOUNTING TO CONSOLE M 14X35
432
BEARING BRACKET STEERED AXLE, TO BE ADAPTED DURING ASSEMBLY
440
BRACKET LEFT
448
BRACKET LEFT
456
BRACKET LEFT
464
BRACKET RIGHT
472
BRACKET RIGHT
480
BRACKET RIGHT
488
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
496
LEVER STEERED AXLE
496
LEVER STEERED AXLE
512
LEVER STEERED AXLE
520
BUSHING STEERED AXLE
528
BRACKET , Replaced By: A6993931040
528
BRACKET STEERED AXLE
552
BRACKET STEERED AXLE, TO BE ADAPTED DURING ASSEMBLY
552
BRACKET , Replaced By: A6254130013
560
SHACKLE STEERED AXLE
568
BALL SOCKET STEERED AXLE
576
SCREW ENGINE MOUNTING AND BRACKET TO BELL HOUSING SUPPORTING ARM M 18X95
584
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
600
NUT PARTICLE FILTER M14
600
NUT , Replaced By: N910113014000
608
NUT TORSION BAR TO BEARING BRACKET,5 904661
616
GREASE NIPPLE
624
WIRE CABLE STEERED AXLE
624
WIRE CABLE STEERED AXLE
632
PIN
640
WASHER CROSS MEMBER TO SUPPORT
640
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
640
WASHER , Replaced By: N000125015019
648
COTTER PIN STRAP TO SUPPORT
999
HELPER SPRING
999
REPAIR KIT PRESSURE LIMIT VALVE
999
SLEEVE
999
VALVE (PRESSURE LIMIT VALVE)
999
PISTON PNEUMATIC SUSPENSION
999
FRONT AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 739.034, ORDER ADDITIONALLY:2X A 699 331 08 74
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET LOAD/NO-LOAD VALVE
999
SHACKLE SPRING TO SHACKLE
999
SHACKLE SPRING TO SHACKLE
999
REAR SUBFRAME FRONT LEFT
999
PLATE LEFT
999
PLATE RIGHT
999
SHIM BETWEEN SPRING AND STEERED AXLE
999
PIN INTERMEDIATE PLATE TO FRONT AXLE
999
PIN STEERED AXLE TO 654 330 00 00
999
AXLE SUSPENSIONNUMMEK
999
AXLE SUSPENSIONNUMMEK
999
AXLE SUSPENSIONNUMMEK
999
AXLE SUSPENSIONNUMMEK
999
LEVER STEERED AXLE
999
STUD FRONT SPRING TO STEERED AXLE
999
STUD FRONT SPRING TO STEERED AXLE
999
NUT , Replaced By: N308673020002
999
NUT , Replaced By: N308674020000
999
NUT REAR SPRING TO REAR AXLE
