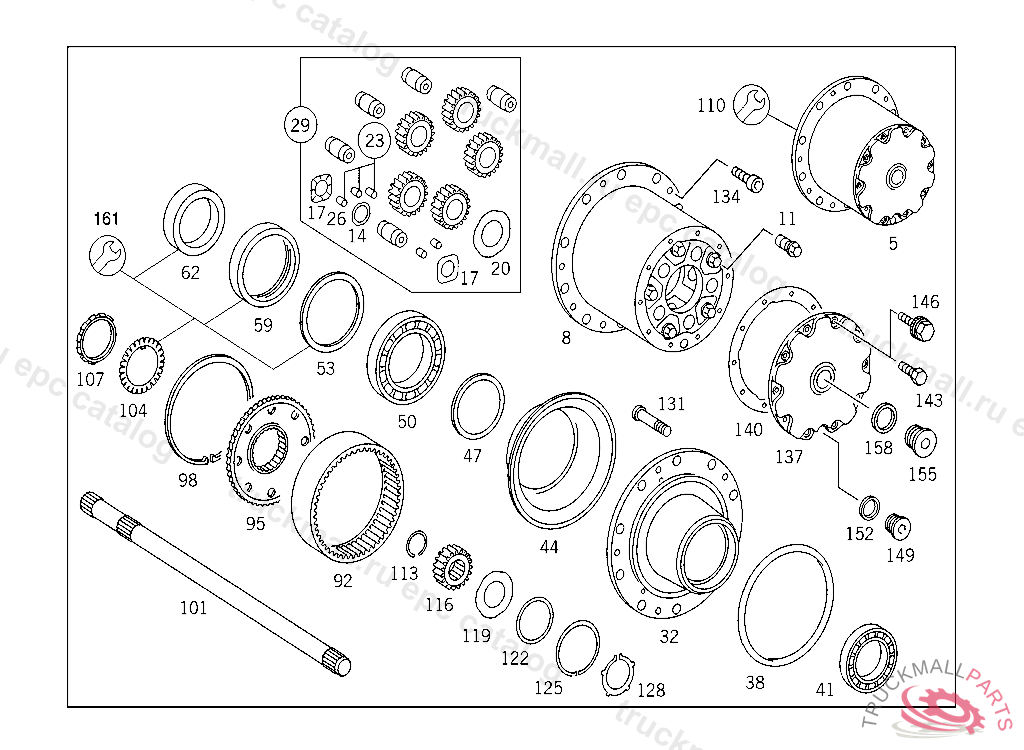

Поз.
Артикул
Описание
5
PLANETARY GEAR DRIVE RATIO: 1:4.000,V 207287
5
PLANETARY GEARING RATIO: 1:4.000,V 496880
5
PLANETARY GEARING RATIO: 1:3.966,W 972500, V 000001V 207286
5
PLANETARY GEARING RATIO: 1:4.000,V 207287, Replaced By: A9423501609
5
PLANETARY GEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE V 477618, Replaced By: A3463504209
8
BELL HUB , Replaced By: A3553505033
8
BELL HUB WITH PLANETARY CARRIER,V 496880
8
BELL HUB WITH PLANETARY CARRIER
11
SCREW , Replaced By: A6243540071
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER PLANET GEAR
17
THRUST WASHER PLANET GEAR
20
THRUST WASHER PLANET GEAR
20
GUARD PLATE PLANETARY GEAR TRAIN
23
NEEDLE BEARING NEEDLES, SET50 PIECES
26
NEEDLE PLANET GEAR
29
PLANET GEAR PARTS KIT,393260
29
PLANET GEAR PARTS KIT
32
WHEEL HUB
32
WHEEL HUB
38
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
38
SEAL RING , Replaced By: A0169979548
38
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
38
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
38
SEAL RING , Replaced By: A0169974048
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
41
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
44
OIL COLLECTOR WHEEL HUB, OUTSIDE TO 346 356 28 01/29 01
44
OIL COLLECTOR
47
OIL COLLECTOR WHEEL HUB, INSIDE,V 361112
50
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
50
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
50
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
50
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
53
COVER PLATE WHEEL HUB, INSIDE
53
COVER PLATE WHEEL BEARING
59
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
59
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
62
THRUST RING WHEEL BEARING
92
OUTSIDE GEAR NUMBER OF TEETH: 85
92
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75,V 207287
92
OUTSIDE GEAR ,V 207287V 496879 FROM REAR AXLE V 496880, SEE STANDARD MICROFICHE
95
SUPPORT OUTSIDE GEAR,V 207287
98
WIRE RING OUTSIDE GEAR TO SUPPORT
101
REAR AXLE SHAFT WITH INTERLOCK SERRATIONS
101
REAR AXLE SHAFT , Replaced By: A6593571101, +001N009045042001
104
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
107
GROOVED NUT HUB AND SUPPORT TO STEERING KNUCKLE, MAN AXLE
107
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
107
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
110
DS WHEEL HUB WHEEL HUB
110
REPAIR KIT PLANETARY GEAR TRAIN WITH SHEET METAL COVER
110
REPAIR KIT PLANETARY GEAR TRAIN WITH SHEET METAL COVER ABS
110
REPAIR KIT , Replaced By: A9403500435, +001A3553560173
110
REPAIR KIT , Replaced By: A9403500135, +001A3553560173
110
REPAIR KIT PLANETARY GEAR TRAIN WITH CAST COVER ABS, NORMAL COURSE OF REPAIR, Replaced By: A9403501235
110
REPAIR KIT WHEEL HUB, Replaced By: A9403501535
110
DS WHEEL HUB WHEEL HUB
113
SNAP RING SUN GEAR TO REAR AXLE SHAFT
116
SUN GEAR NUMBER OF TEETH: 25,V 207287V 252111
116
SUN GEAR NUMBER OF TEETH: 25,V 207287V 496879 FROM REAR AXLE V 496880, SEE STANDARD MICROFICHE
119
THRUST WASHER PLANET GEAR
119
GUARD PLATE PLANETARY GEAR TRAIN
122
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
122
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
122
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
122
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
122
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
125
LOCK RING THRUST WASHER TO BELL HUB
128
LOCK RING DRIVE SHAFT, Replaced By: N000471040002
131
WHEEL MOUNTING BOLT DISC WHEEL ON WHEEL HUB
134
CAPSCREW W HEXAL. DRIVE BRACKET TO PUMP M12X25
137
HUB CAP BELL HUB
137
END COVER , Replaced By: A6243560020, +001A6503560080, +001A6249970032, +010N914146010401
140
GASKET , Replaced By: A6503560180
140
GASKET , Replaced By: A6503560080
140
GASKET COVER TO HUB
140
GASKET COVER TO BELL HUB, MAN AXLE
143
SCREW BRACKET TO SIDE MEMBER
146
SCREW COVER TO BELL HUB
149
SCREW PLUG
149
SCREW PLUG OIL DRAIN
149
SCREW PLUG , Replaced By: A2109970132
152
SEALING RING. SEAL RING OIL DRAIN
155
SCREW PLUG OIL FILLING
158
SEALING RING OIL FILLING
