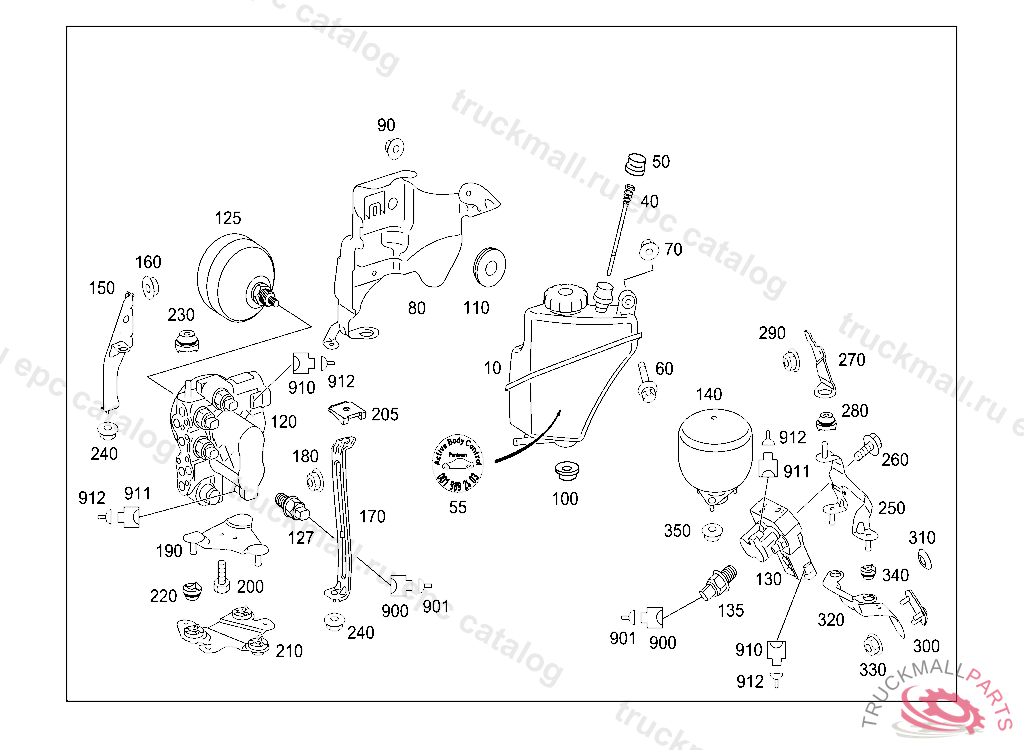

Поз.
Артикул
Описание
10
OIL TANK ABC SUSPENSION (ACTIVE BODY CONTROL)
40
OIL DIPSTICK ABC RESERVOIR
50
PROTECTIVE CAP
55
GUIDE SIGN OIL TANK
60
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
70
NUT BRACKET TO BODY SHELL M6
80
PROTECTIVE PLATE AT WHEEL ARCH
90
NUT BRACKET TO BODY SHELL M6
100
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
110
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
120
VALVE UNIT FRONT AXLE
120
VALVE UNIT FRONT AXLE, Replaced By: A2213200958
125
PRESSURE ACCUMULATOR FRONT AXLE
127
SENDER UNIT FRONT AXLE, A 02868220110630802
127
PRESSURE SENSOR FRONT AXLE, A 02654220100930801
130
VALVE UNIT REAR AXLE, A 02868220110630802
130
VALVE UNIT REAR AXLE, A 02654220100930801
135
PRESSURE SENSOR FRONT AXLE, A 02654220100930801
135
SENDER UNIT FRONT AXLE, A 02868220110630802
140
PRESSURE ACCUMULATOR REAR AXLE
150
PLATE TO LONGITUDINAL MEMBER FRONT
160
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
BRACKET FRONT LEFT
180
NUT BRACKET TO BODY SHELL M6
190
BRACKET VALVE UNIT FASTENING
200
HEXAGON HEAD BOLT LINE MOUNTING M6X10
205
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
210
PLATE FRONT VALVE UNIT, TO MOUNTING PLATE
220
INTERMEDIATE BEARING , F 53236820100411MF 502825
230
INTERMEDIATE BEARING , F 53236820100411MF 502825
240
NUT BRACKET TO BODY SHELL M6
250
PLATE REAR VALVE UNIT
260
HEXAGON HEAD BOLT LINE MOUNTING M6X10
270
BRACKET REAR LEFT
280
INTERMEDIATE BEARING , F 53236820100411MF 502825
290
NUT BRACKET TO BODY SHELL M6
300
PLATE TO BODY
310
STOP PLUG BATTERY CASE 6.5 MM
320
BRACKET VALVE UNIT FASTENING
330
NUT BRACKET TO BODY SHELL M6
340
INTERMEDIATE BEARING , F 53236820100411MF 502825
350
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
900
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
901
GASKET YELLOW 0.2-0.5MM2,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
910
CLUTCH DOOR LOCK, FRONT 4-PIN MLK1.2,A85, A85/1
910
PLUG X86/1, NOX SENSOR CONTROL UNIT SEPARATING POINT, CONNECTOR: 4-PIN MLK1.2,1
911
PLUG FRONT VALVE UNIT 4-PIN MLK,Y36/1
912
GASKETTO 001 540 99 81
912
CRIMP RECEPTACLE CONTACT ,V 215932
