Поз.
Артикул
Описание

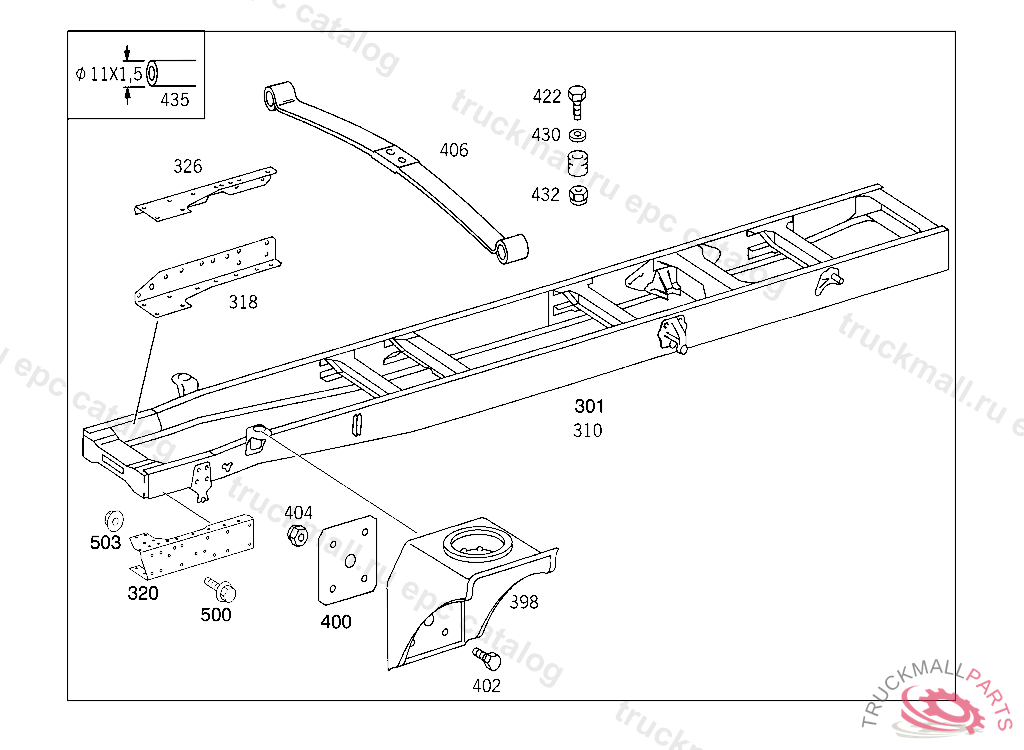

301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
301
FRAME
310
FRAME
310
FRAME
318
GUSSET PLATE BOTTOM RIGHT
318
GUSSET PLATE BOTTOM LEFT
318
GUSSET PLATE LEFT BOTTOM
318
GUSSET PLATE BOTTOM LEFT
318
GUSSET PLATE BOTTOM RIGHT
318
GUSSET PLATE RIGHT BOTTOM
320
GUSSET PLATE RIGHT BOTTOM
320
GUSSET PLATE LEFT
320
GUSSET PLATE LEFT BOTTOM
320
GUSSET PLATE LEFT BOTTOM
320
GUSSET PLATE RIGHT
320
GUSSET PLATE RIGHT BOTTOM
326
GUSSET PLATE TOP LEFT
326
GUSSET PLATE TOP RIGHT
398
BODY SUPPORT CAB SUSPENSION,FRONT
400
REINFORCEMENT CAB SUSPENSION,FRONT
402
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
402
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
404
NUT ALTERNATOR TO SUPPORT
406
SPRING LEAF
422
SCREW BUSHING TO SUPPORT
422
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
430
WASHER GROUND CABLE
432
NUT ALTERNATOR TO SUPPORT
435
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
500
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
500
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
503
NUT REINFORCEMENT ANGLE AND GUSSET PLATE TO FRAME
503
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
FRAME ,D 426186
999
FRAME ,D 426186
999
FRAME ,D 426186
999
FRAME
999
FRAME
999
BRACKET TO INTERMEDIATE SHAFT BEARING
999
FRAME
999
WASHER BRACKET TO FRAME
999
BRACKET BRACKET TO CROSS MEMBER NO.4
999
ANGLE RIGHT
999
ANGLE LEFT
999
FRAME
999
FRAME
999
FRAME
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
