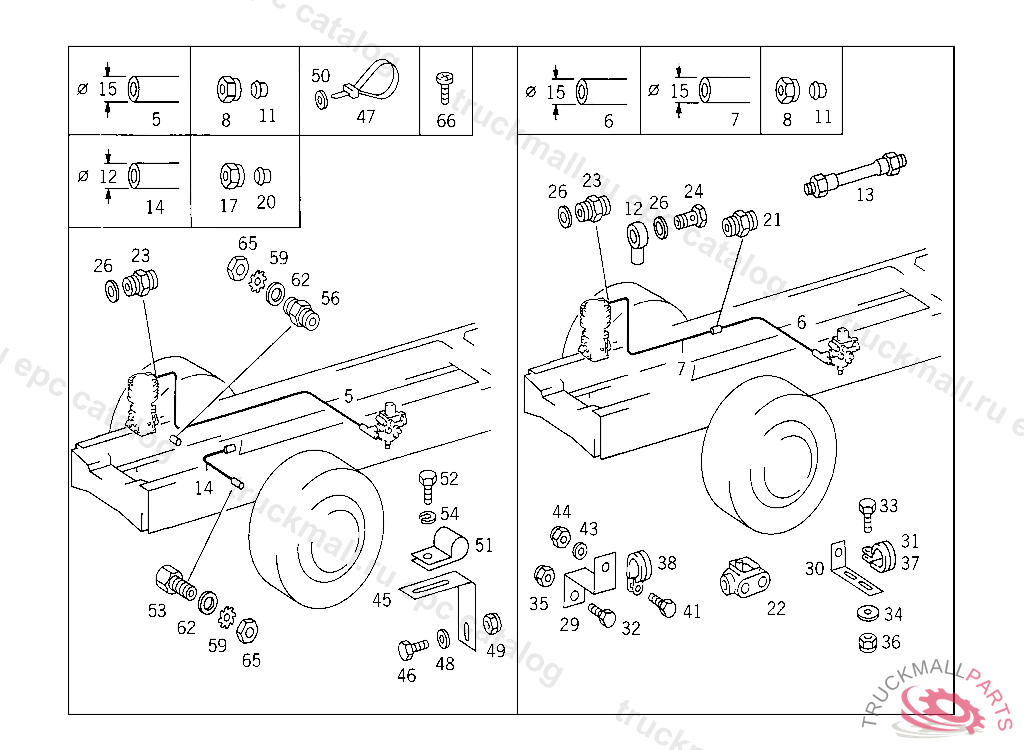

Поз.
Артикул
Описание
5
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM
5
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,1B 936133
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
LINE FROM DOUBLE FITTING TO BULKHEAD FITTING
17
UNION NUT LINE CONNECTION, Replaced By: N000000006239
20
GLAND , Replaced By: A0019901967
23
CONNECTOR AIR RESERVOIR
26
SEAL RING LINE CONNECTION
29
BRACKET BRACKET TO LEFT SIDE MEMBER
30
BRACKET AT TRANSMISSION,B 965920
31
CLAMP , Replaced By: A3129952420
32
SCREW COMPRESSED AIR PIPING
33
SCREW CLAMP TO BRACKET
35
NUT SUPPORT TO SIDE MEMBER
36
NUT PUMP TO BRACKET
38
CLAMP
41
SCREW LINES TO BRACKET
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
45
BRACKET COMPRESSED AIR PIPING,1B 936134
46
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
47
LOOM TIE ELECTRIC CABLE MOUNTING
47
LOOM TIE , Replaced By: A3459977390
47
LOOM TIE LINE MOUNTING
48
WASHER GROUND CABLE
49
NUT SPRING CLAMP
50
WASHER , Replaced By: A3609902340
50
WASHER BRACKET TO LEFT SIDE MEMBER
51
CLAMP , Replaced By: A6739950001
52
SCREW CLAMP TO BRACKET
53
ADAPTER FITTING COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER
54
LOCK WASHER CABLE TO FUSE BOX
56
ADAPTER FITTING THROUGH SIDE MEMBER
56
FITTING LINE CONNECTION TO FIRE WALL,684146
59
TOOTHED WASHER SENDER UNIT TO BRACKET
62
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
65
NUT BRACKET TO SIDE MEMBER
66
SCREW CAP TO BRACKET
