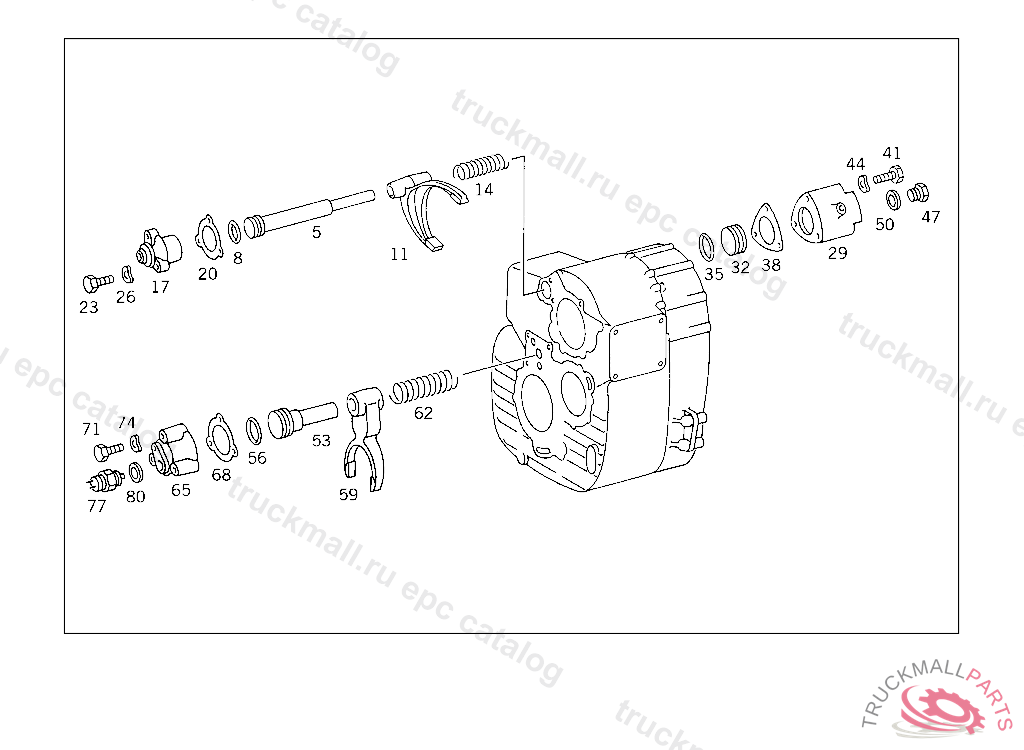

Поз.
Артикул
Описание
5
ROD ON-ROAD/OFF-ROAD SPEED
8
SEAL RING P.T.O. CONTROL
11
SHIFTING FORK ON-ROAD/OFF-ROAD SPEED
14
SPRING SHIFTING FORK
17
SHIFTING CYLINDER TOP
20
GASKET CYLINDER TO HOUSING
20
GASKET , Replaced By: A3872811580
23
SCREW , Replaced By: N304017008018
26
SPRING WASHER , Replaced By: N000137008212
29
CYLINDER , Replaced By: A6592840485
29
SHIFTING CYLINDER ON-ROAD/OFF-ROAD SPEED
32
PISTON TRANSVERSE DIFFERENTIAL LOCK
35
SEAL RING SHIFTING FORK,021424
38
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
41
SCREW REAR COVER TO TRANSMISSION M 8X70
44
SPRING WASHER , Replaced By: N000137008212
47
SCREW PLUG WATER DRAIN
50
SEAL RING VALVE TO VALVE,K 025179
53
ROD (PISTON)
56
SEAL RING SHIFTING FORK,021424
59
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, FROM TRANSFER CASE 005834
59
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, UP TO TRANSFER CASE 005833
62
SPRING SHIFTING FORK
65
SHIFTING CYLINDER LONGITUDINAL DIFFERENTIAL LOCK
68
GASKET CYLINDER TO P.T.O. HOUSING
68
GASKET , Replaced By: A3852811180
71
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
74
SPRING WASHER , Replaced By: N000137008212
77
SWITCH , Replaced By: A0015455709
77
SWITCH , Replaced By: A0015458214
77
SWITCH
80
SEAL RING VALVE TO VALVE,K 025179
