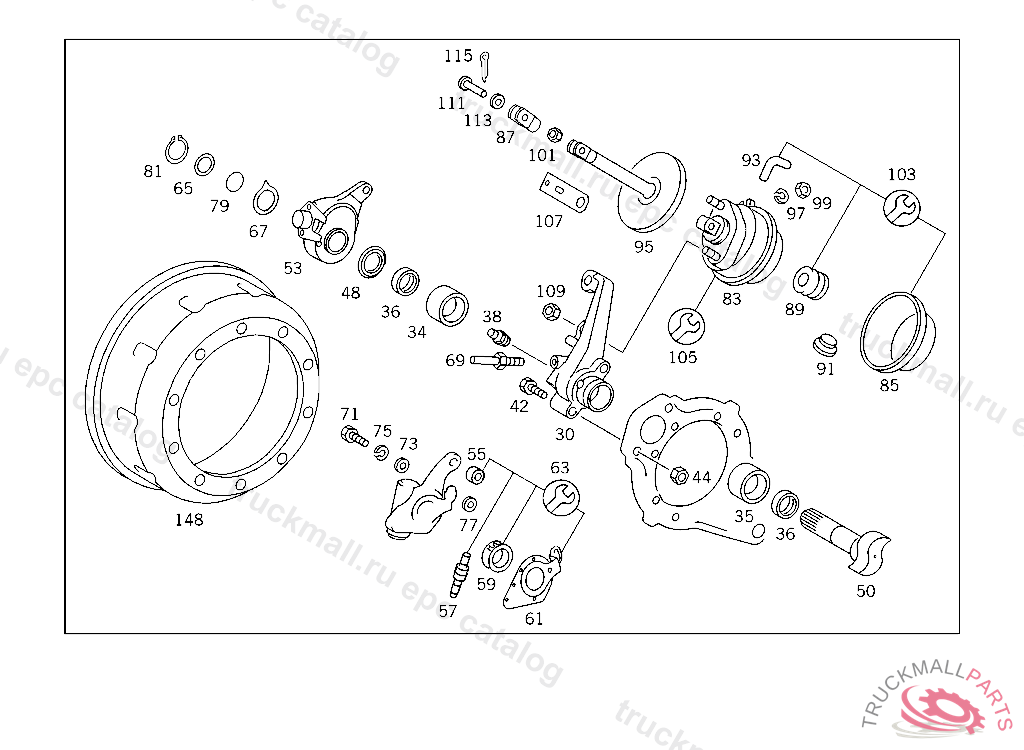

Поз.
Артикул
Описание
30
BRAKE ANCHOR FRONT AXLE,RIGHT
30
BRAKE ANCHOR FRONT AXLE,LEFT
30
BEARING BRACKET , Replaced By: A6584210406
30
BEARING BRACKET , Replaced By: A6584210506
34
BUSHING OUTSIDE
35
BUSHING INSIDE
36
SEAL RING OUTSIDE BEARING BRACKET
36
SEAL RING INSIDE BEARING BRACKET
36
SEAL RING OUTSIDE BEARING BRACKET
36
SEAL RING INSIDE BEARING BRACKET
36
SEAL RING INSIDE BEARING BRACKET
36
SEAL RING , Replaced By: A0129974147
36
SEAL RING OUTSIDE BEARING BRACKET
38
GREASE NIPPLE INTERMEDIATE LEVER
38
GREASE NIPPLE
42
SCREW BEARING BRACKET TO BRAKE ANCHOR
44
NUT , Replaced By: A0009905750
44
NUT BEARING BRACKET TO BRAKE ANCHOR
48
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
50
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
50
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
53
ADJUSTER , Replaced By: A9454200138
53
ADJUSTER , Replaced By: A9454200038
57
WORM SCREW"SAB"
59
WORM GEAR"SAB"
61
CONTROL UNIT
63
REPAIR KIT SLACK ADJUSTER "SAB"
65
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
65
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
65
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
65
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
67
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
71
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
73
WASHER , Replaced By: N000125008443
75
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
77
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
79
SPACER WASHER ADJUSTER
81
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
83
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),RIGHT WABCO
83
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),LEFT WABCO
89
CUPTO 007 420 68 18,WABCO
103
REPAIR KIT DIAPHRAGM PART
105
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO,K 262627
109
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
111
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
113
WASHER , Replaced By: N000433015005
115
COTTER PIN STRAP TO SUPPORT
148
BRAKE DRUM
