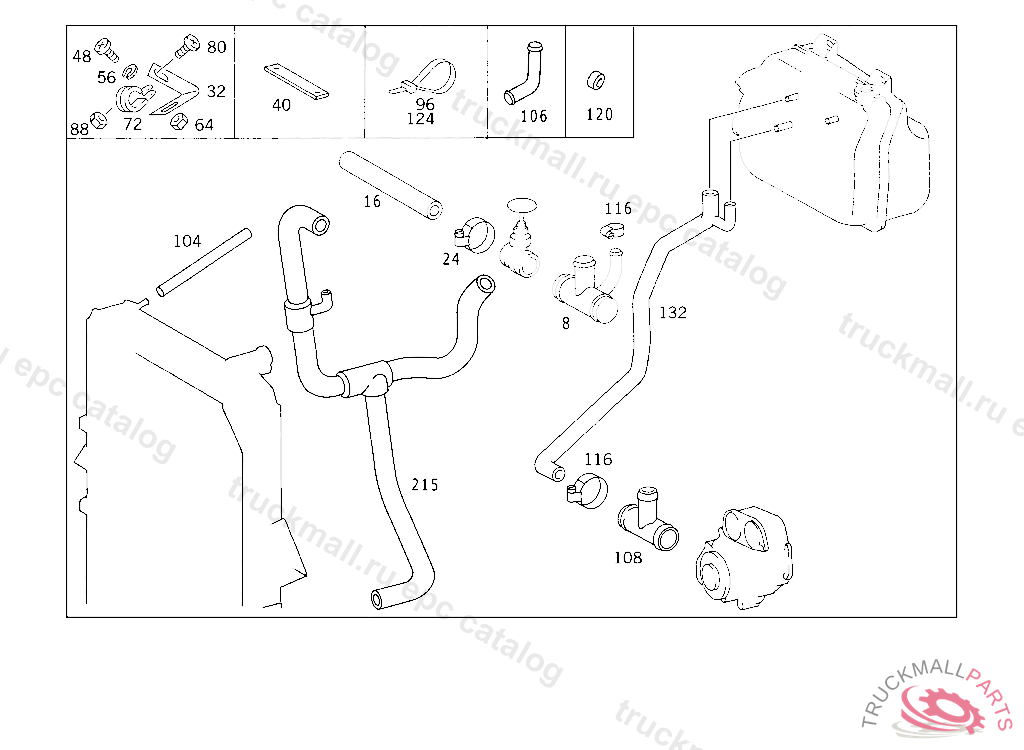

Поз.
Артикул
Описание
8
FITTING ENGINE HEATING CONNECTION
16
HOSE FROM FLANGE TO VALVE,073290-
16
HOSE FROM FLANGE TO VALVE,063247
16
HOSE FROM FLANGE TO VALVE,073289
16
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
16
HOSE FROM FLANGE TO VALVE, TO BE ADAPTED DURING ASSEMBLY
24
LOOM TIE. CLAMP HOSE TO HEATING PIPE
24
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
24
CLAMP AIR COMPRESSOR
24
CLAMP HOSE TO HEATING PIPE
32
BRACKET HEATING VALVE,073289
40
BRACKET HEATING VALVE
48
SCREW VALVE TO BRACKET,073289
56
LOCK WASHER RAIL TO BATTERY SUPPORT
64
NUT , Replaced By: N304032008006
72
CLAMP HOSE TO FLANGE AND TO VALVE
80
SCREW FUSE BOX TO APPARATUS PLATE
88
NUT
96
LOOM TIE , Replaced By: A3459977390
96
LOOM TIE ELECTRIC CABLE MOUNTING
104
HOSE FROM HEAT EXCHANGER TO WATER PUMP
104
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073290-
104
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073289
104
HOSE FROM HEAT EXCHANGER TO WATER PUMP,063247
104
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073289
104
HOSE FROM HEAT EXCHANGER TO WATER PUMP
106
PIPE LINE FROM HEAT EXCHANGER TO WATER PUMP
108
COOLING WATER PIPE
108
COOLING WATER PIPE , Replaced By: A6955017024
116
CLAMP AIR COMPRESSOR
116
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
116
LOOM TIE HOSE TO HEATING PIPE
116
CLAMP HOSE TO HEATING PIPE
120
WASHER , Replaced By: A3609902340
124
LOOM TIE LINE TO BRACKET 508 MM
124
LOOM TIE AIR INTAKE HOSE TO CLAMP
124
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
132
HOSE FROM EXPANSION TANK TO WATER PUMP
132
HOSE FROM EXPANSION TANK TO WATER PUMP
132
HOSE FROM EXPANSION TANK TO WATER PUMP
132
HOSE FROM EXPANSION TANK TO WATER PUMP
215
HOSE FROM RADIATOR TO THERMOSTAT
999
CLAMP FEED LINE TO THERMOSTAT
999
PIPE SOCKET AT ENGINE
999
PIPE SOCKET HOT WATER HEATING CONNECTION
999
HOSE (HEATING LINE),FROM ENGINE TO HEATER
999
HOSE (HEATING LINE) FROM EXPANSION TANK TO HEATER
999
BRACKET COOLING WATER LINE TO FIRE WALL
999
PIPE (HEATING LINE),FROM ENGINE TO HEATER
999
HOSE (HEATING LINE),FROM ENGINE TO HEATER
999
HOSE (HEATING LINE),FROM ENGINE TO HEATER
999
LOCKING CAP AT WATER EXPANSION TANK
999
CLAMP LINE MOUNTING
999
SHEET METAL SCREW FUSE BOX TO BRACKET
999
SHEET METAL SCREW BRACKET TO CAB
