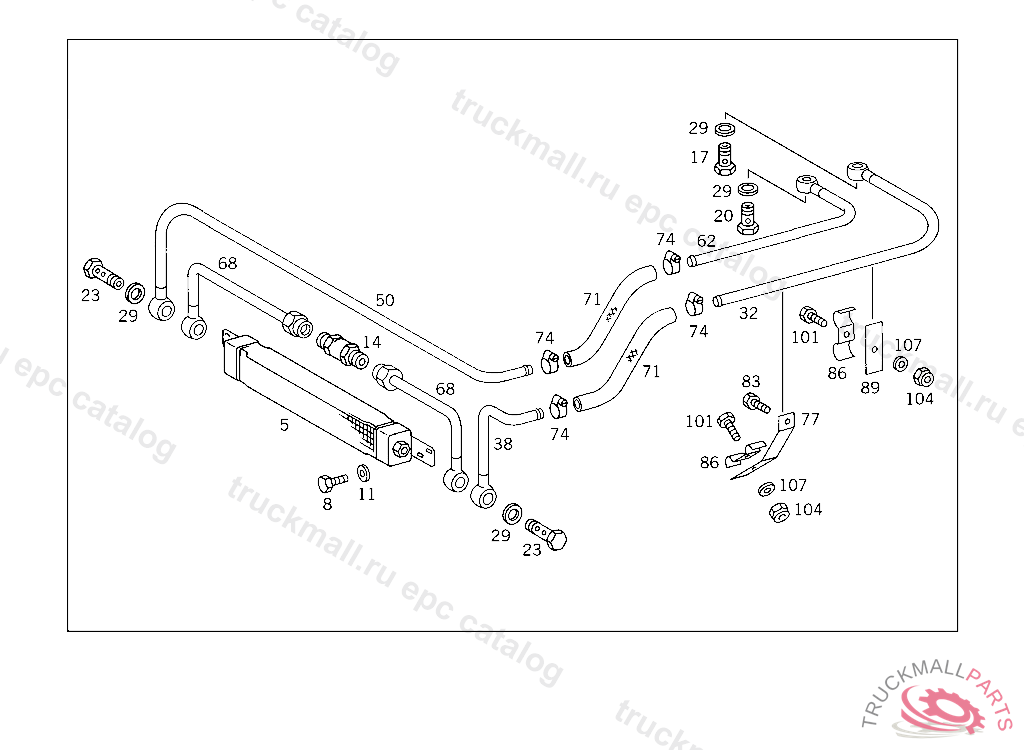

Поз.
Артикул
Описание
5
OIL COOLER (OIL COOLER)
5
RADIATOR (OIL COOLER)
8
SCREW SWITCH TO BRACKET 8X16
11
WASHER TRAILER PLUG SOCKET TO BRACKET
14
VALVE (OVERFLOW VALVE)
14
VALVE (OVERFLOW VALVE)
17
HOLLOW SCREW OIL LINE TO TRANSMISSION
20
HOLLOW SCREW OIL LINES TO TRANSMISSION
23
HOLLOW SCREW OIL LINE TO OIL COOLER,B 927331
29
SEAL RING LINE CONNECTION
32
PIPE FROM TRANSMISSION TO RETURN HOSE,B 927331
38
PIPE FROM HOSE TO OIL COOLER RETURN,B 927331
50
PIPE HOSE TO OIL COOLER,B 927331
62
PIPE HOSE TO TRANSMISSION CASE,B 927331
68
PIPE FROM OVERFLOW VALVE TO CONNECTOR,B 927331
71
HOSE , Replaced By: A3859971682
74
CLAMP FROM EXPANSION TANK TO ENGINE
74
CLAMP AIR COMPRESSOR
77
BRACKET LINE MOUNTING,B 927331
83
SCREW COLD START SYSTEM TO BRACKET
86
CLAMP LINE MOUNTING
89
CLAMPING PIECE LINE MOUNTING
101
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
104
NUT PUMP TO BRACKET
107
WASHER PLUG SOCKET TO BRACKET
