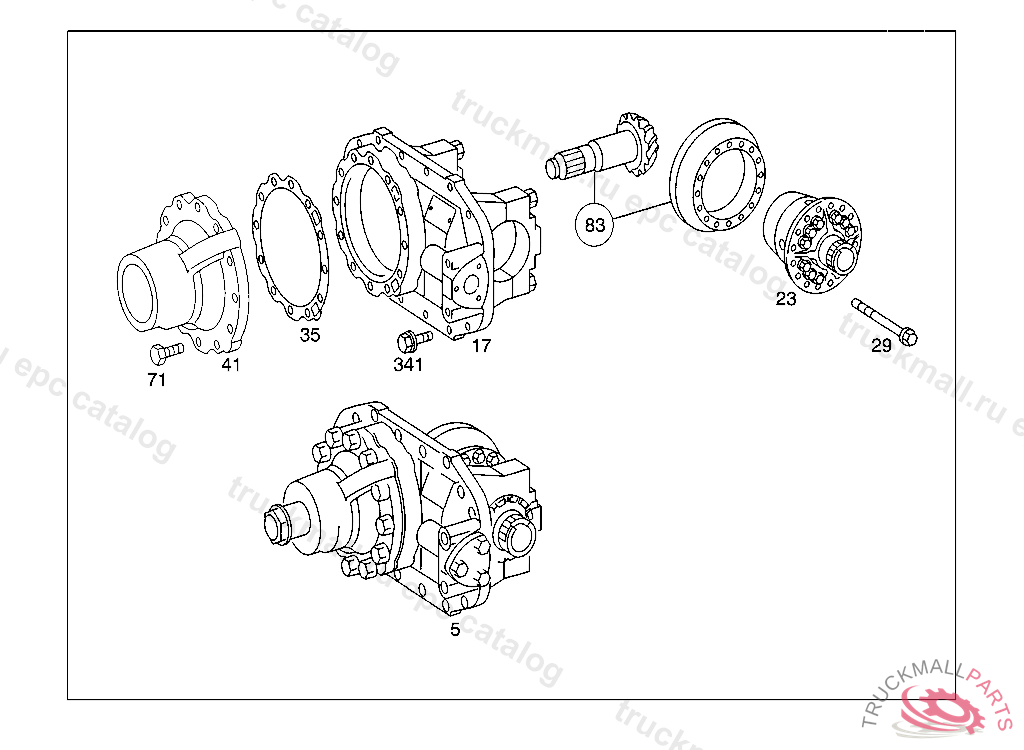

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR LESS FLANGE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
17
AXLE HOUSING WITH BEARING CAP
17
AXLE HOUSING , Replaced By: A3893502520
23
AXLE INTRODUCTION LESS RING GEAR AND PINION
29
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
29
SCREW , Replaced By: A3559900704
35
SPACER WASHER AS REQUIRED 0.35 MM
35
SPACER WASHER AS REQUIRED 1.00 MM
35
SPACER WASHER AS REQUIRED 0.50 MM
35
SPACER WASHER AS REQUIRED 0.15 MM
41
HOUSING (PINION HOUSING)
71
SCREW BRACKET TO BRACKET
83
RING GEAR AND PINION RATIO: 26:24
341
SCREW BRACKET TO BRACKET
341
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE W 891056
341
SCREW , Replaced By: A3559901404
341
SCREW IN CASE OF CAST AXLE
999
REPAIR KIT THROUGH DRIVE
999
DIFFERENTIAL GEAR LESS FLANGE
999
DIFFERENTIAL GEAR LESS FLANGE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
RING GEAR AND PINION RATIO: 27:18
999
RING GEAR AND PINION , Replaced By: A9443501839
999
WHEEL HUB DRIVE WHEEL HUB DRIVE
999
REPAIR KIT , Replaced By: A6583500323
999
SEAL RING PINION HOUSING TO AXLE HOUSING
