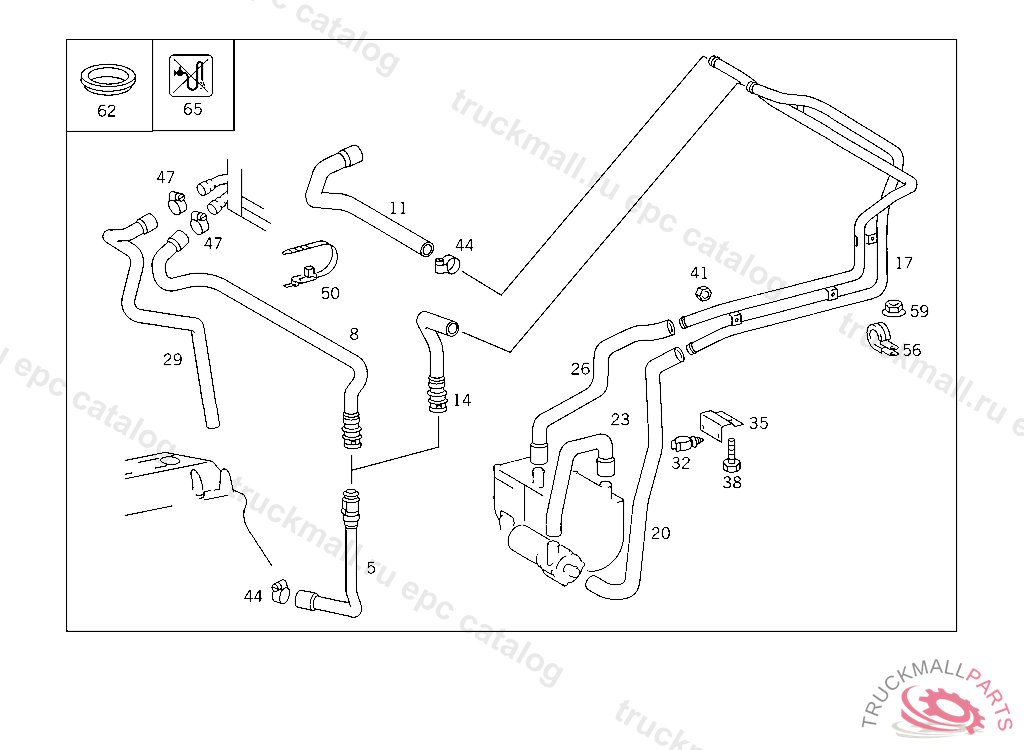

Поз.
Артикул
Описание
5
HOSE FEED, WITH FUEL PREHEATER ONLY OM 602, P 541625 R 000001
5
HOSE ,P 541624, Replaced By: A9018300196, +001A9018300696
5
HOSE ,P 541624, Replaced By: A9018300396, +001A9018300696
5
HOSE FEED, NOT WITH FUEL PREHEATHER OM 602, P 541625 R 000001
8
HOSE ,P 541624 IN CASE OF OM 602 LA LESS FUEL PREHEATING, Replaced By: A9018300696, +001A9018300396
8
HOSE FEED, P 541625 R 000001
11
HOSE FEED,PIPE GROUP TO HEAT EXCHANGER WITH AUXILIARY HEATER ONLY
11
HOSE FEED,PIPE GROUP TO HEAT EXCHANGER WITH AUXILIARY HEATER ONLY
14
HOSE FEED TO PIPE SYSTEM
17
PIPELINE. PIPE LINE
20
HOSE FEED TO AUXILIARY HEATER
23
HOSE FEED TO AUXILIARY HEATER
26
HOSE FEED TO PIPE SYSTEM
26
HOSE FEED TO PIPE SYSTEM
29
HOSE RETURN OM 602
32
BRACKET HOSE ATTACHMENT
32
BRACKET VALVE TO BRACKET
35
BRACKET ONLY WITH AUXILIARY HEATER
38
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
41
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
41
NUT , Replaced By: N913023006001
44
CLAMP , Replaced By: N916026020001
44
CLAMP , Replaced By: N000000000667
44
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
CLAMP PRESSURE REGULATOR
47
CLAMP HOSE FASTENING 28-35 MM,V 207570
47
CLAMP , Replaced By: A0069974290
50
LOOM TIE ELECTRIC CABLE MOUNTING
50
CABLE STRAP HOLDER. LOOM TIE
56
CLAMP BRAKE HOSE BRACKET
59
NUT COVERING TO CAB FIRE WALL
62
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
65
GUIDE SIGN SYMBOL: NO WATER IN AIR DUCT
999
