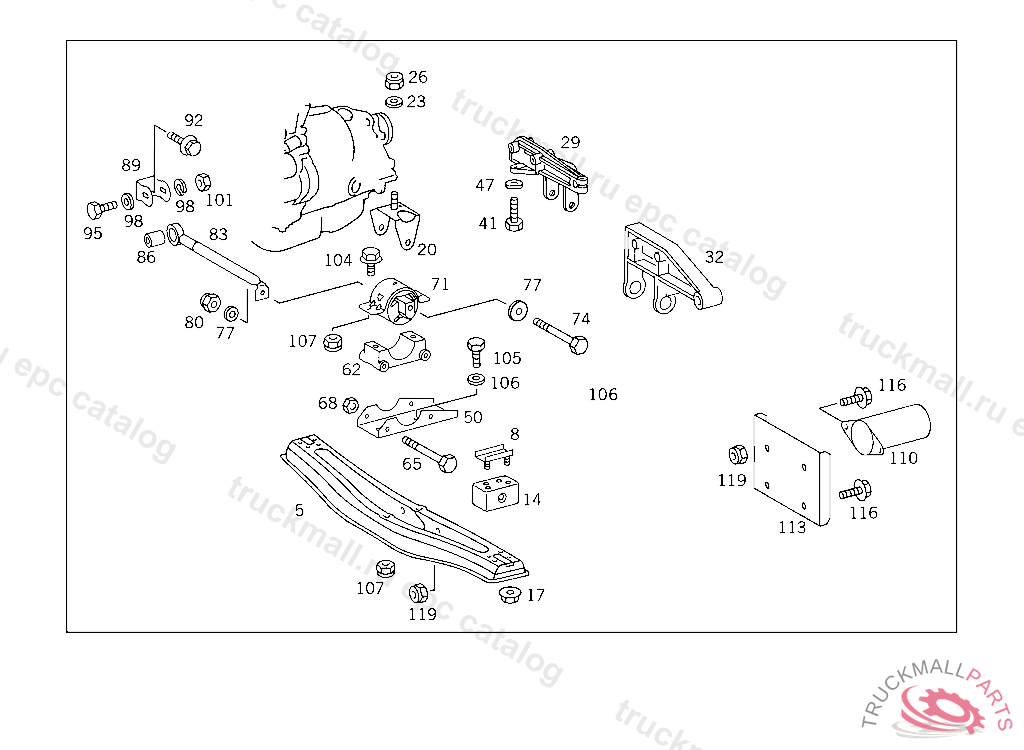

Поз.
Артикул
Описание
5
ENGINE SUPPORT REAR
5
8
MOUNTING PLATE LEFT
8
14
14
17
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
20
BRACKET ENGINE MOUNTING TO TRANSMISSION
20
23
WASHER , Replaced By: N000125013008
23
WASHER
26
HEXAGON NUT. NUT VIBRATION ABSORBER
29
32
41
SCREW VALVE TO BRACKET M 8X55
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
47
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
50
50
50
50
50
62
65
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
68
NUT BRACKET TO SIDE MEMBER
71
RUBBER MOUNTING REAR
74
SCREW BODY TO FRAME 10X120
77
WASHER BRACKET TO COVERING
80
NUT STRAP TO BRACKET
83
86
BEARING TRANSFER CASE TO FRAME
86
BEARING , Replaced By: A4602801586
89
92
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY PLATE TO BELL HOUSING
95
SCREW SHIFTING ROD TO SHIFT LEVER
98
WASHER STRUT TO CROSS MEMBER
98
WASHER , Replaced By: N007349010007
101
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
104
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
105
SCREW BRACKET TO CROSS CONNECTION STRUT
106
WASHER
107
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
107
NUT BRACKET TO SIDE MEMBER
110
ENGINE VIBRATION ABSORBER ENGINE REAR SUPPORT
116
SCREW SPEED SENSOR TO REAR AXLE
116
SCREW , Replaced By: N910143008000
119
NUT HORN TO BRACKET M8
