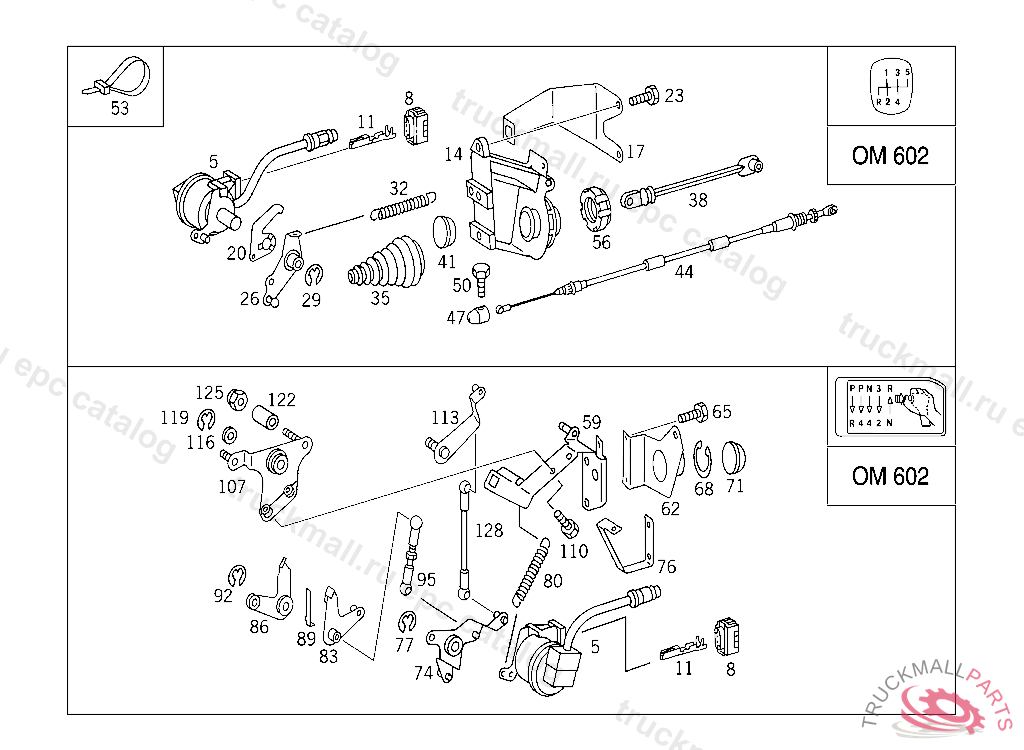

Поз.
Артикул
Описание
5
SENDER UNIT (PEDAL VALUE SENSOR)
8
PIN BUSHING HOUSING 6-POLE
11
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
11
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.25MM2,126373
14
17
17
20
23
SCREW. HEXAGON HEAD BOLT BRACKET TO COVERING M6X16
26
26
29
LOCK PLATE RELEASE LEVER TO SHAFT
32
35
38
41
PLUGTO 302 330 09 03
44
47
END PIECE WIRE CABLE
50
HEXAGON HEAD BOLT. SCREW VALVE TO BRACKET
53
LOOM TIE LINE MOUNTING 280 MM
56
NUT
59
62
65
SCREW. HEXAGON HEAD BOLT BRACKET TO COVERING M6X16
68
LOCK RING
71
PLUG REAR PANEL
74
74
76
77
LOCK PLATE RELEASE LEVER TO SHAFT
80
SPRING INJECTION PUMP CONTROL LEVER
80
83
LEVER ANGULAR LEVER
86
LEVER (DRAG LINK)
89
SPRING AT DRAG LINK
92
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
92
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
95
ROD FROM ANGULAR LEVER TO REVERSING LEVER
107
BRACKET
110
HEXAGON HEAD BOLT END COVER TO HOUSING M6X12
113
LEVER CONTROL LEVER
116
FITTED WASHER AS REQUIRED 1.0 MM
119
LOCK PLATE RELEASE LEVER TO SHAFT
122
SPACER TUBE BRACKET TO CONSOLE,LEFT
125
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
128
ROD FROM REVERSING LEVER TO CONTROL LEVER
