Поз.
Артикул
Описание
5

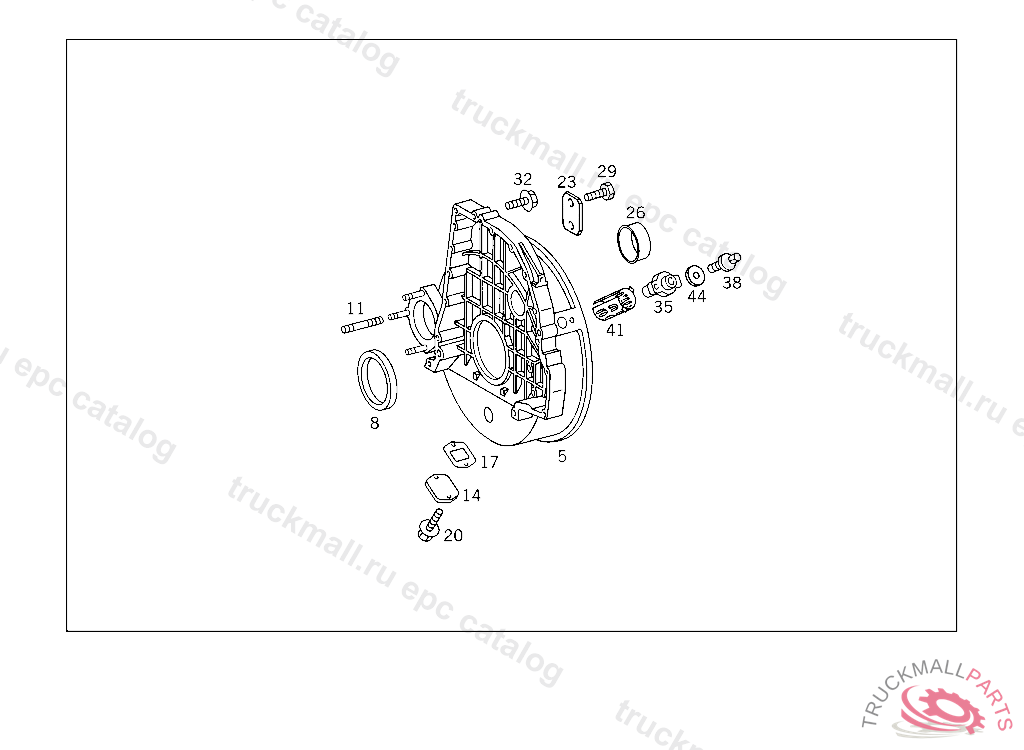

TIMING CASE FLYWHEEL HOUSING
5
TIMING CASE FLYWHEEL HOUSING
8
SEAL RING CRANKSHAFT SEALING,REAR,708528 IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: A 013 997 14 47 + A 403 032 03 09 I.D., 115MM
8
SEAL RING
8
SEAL RING , Replaced By: A0259975047
11
STUD. SCREW GROUND CONNECTION
14
COVER TIMING CASE
14
EXPANSION PLUG CRANK OPENING
17
GASKET T.D.C. SENDER UNIT TO BRACKET,396842
20
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
23
EXPANSION PLUG CRANK OPENING
23
COVER TIMING CASE
26
PROTECTIVE CAP TIMING CASE
29
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
32
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
32
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
35
BRACKET SPEED SENDER UNIT
38
SCREW ,189564/91
41
LOCK. BUSHING , Replaced By: A3555420273
44
SEAL RING
999
CABLE BAND HOLDER WIRING HARNESS FASTENING
