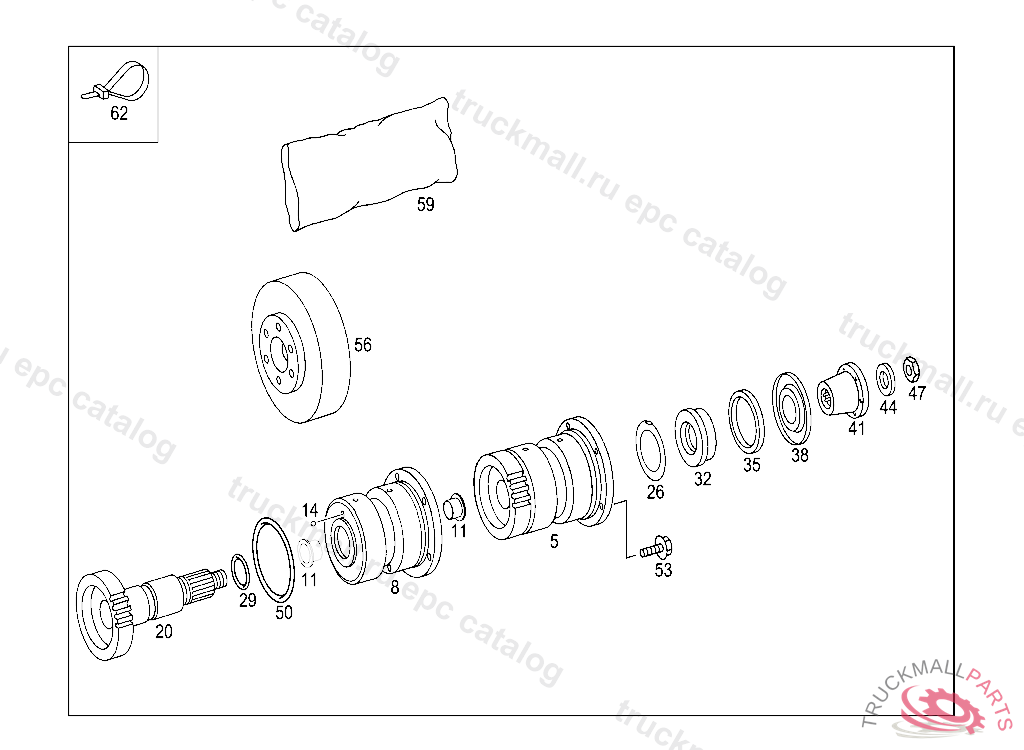

OM 924 LA - 924.910 - 23 POWER STEERING PUMP
Поз.
Артикул
Описание
5
DRIVE P.T.O., FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
DRIVE P.T.O.
8
BEARING BODY P.T.O.
8
BEARING BODY P.T.O.
11
BUSHING
11
BUSHING , Replaced By: A9062340450
14
BALL FUEL BORE COVER,UNIT PUMP SIDE
20
SHAFT P.T.O.
26
THRUST WASHER P.T.O., Replaced By: A9069909482
29
SEAL RING P.T.O.
32
THRUST WASHER P.T.O.
35
SEAL RING P.T.O.
38
WASHER P.T.O.
41
FLANGE P.T.O.
44
WASHER OUTPUT FLANGE TO P.T.O. SHAFT
47
HEXAGON NUT P.T.O. M24X2
47
NUT P.T.O. M45X1.5
50
SEAL RING P.T.O.
53
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
