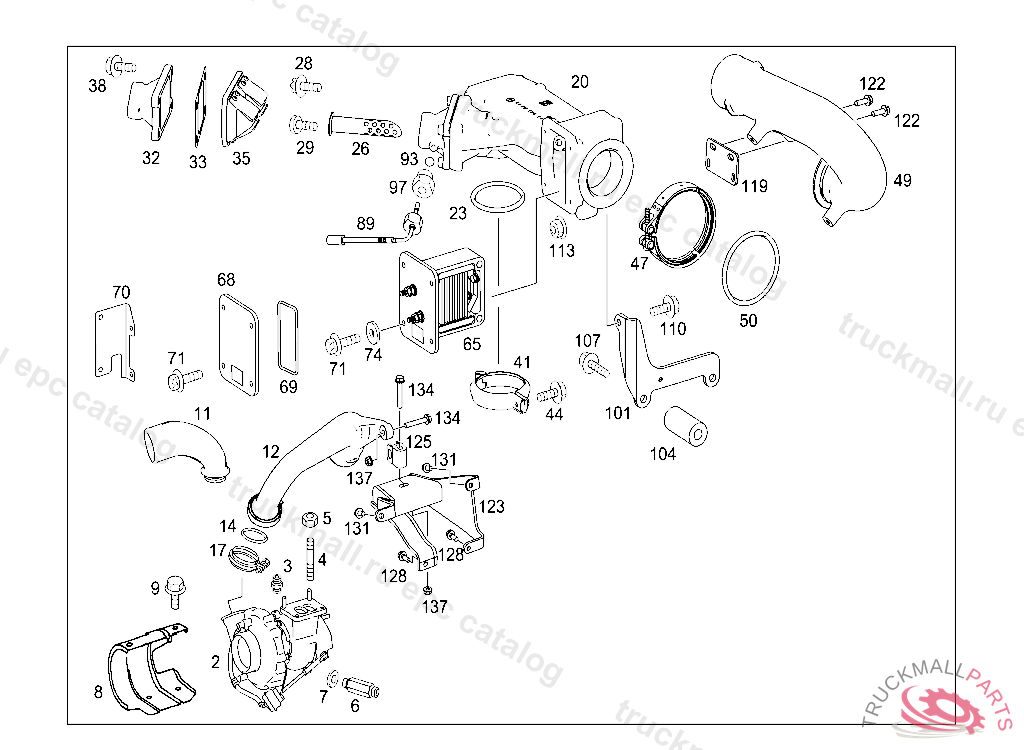

Поз.
Артикул
Описание
2
TURBOCHARGER
2
TURBOCHARGER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 540690 REMAN PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"R" IN FRONT OF THE PART NO., Replaced By: A9260962399
2
TURBOCHARGER , Replaced By: A9260966999
3
SCREW-IN FITTINGBORGWARNER
4
STUD THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
4
STUD THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
5
NUT END PIECE TO EXHAUST PIPE
8
SCREENING PLATE
8
SCREENING PLATE AT EXHAUST PIPE
9
SCREW SCREENING PLATE TO PIPE ELBOW
9
HEXAGON HEAD BOLT BRACKET TO THROTTLE HOUSING M8X16
12
AIR LINE CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
14
SEAL RING CHARGING AIR LINE TO TURBOCHARGER
17
CLAMP CHARGING AIR LINE TO TURBOCHARGER
17
CLAMP CHARGING AIR LINE TO TURBOCHARGER
20
AIR LINE CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
23
SEAL RING CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
32
FLANGE CHARGE AIR PIPE, TEMPERATURE SENSOR IS NO LONGER REQUIRED
35
VALVE FLANGE TO CHARGE AIR PIPE
38
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
41
CLAMP INTAKE HOSE TO INTAKE PIPE
44
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
47
CLAMP CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
49
AIR LINE CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
50
SEAL RING THRUST WASHER TO DRIVE SHAFT
68
CLOSING COVER WITHOUT SEAL,*0843176
68
COVER WITH GASKET,*0843175, Replaced By: A9049980090, +001A4600980380
69
GASKET EXPANSION PLUG TO A 904 998 00 90
71
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
71
SCREW BRACKET AND CLAMP M6X20
101
BRACKET CHARGE AIR PIPE COLD AT CYLINDER HEAD
104
SPACER TUBE CHARGE AIR PIPE COLD AT CYLINDER HEAD
107
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
110
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
119
BRACKET
122
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
123
BRACKET
125
BRACKET CHARGE AIR PIPE
128
SCREW BRACKET TO SIDE MEMBER M8X20
131
SCREWM 10X20
134
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
134
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
137
NUT , Replaced By: N913023010002
