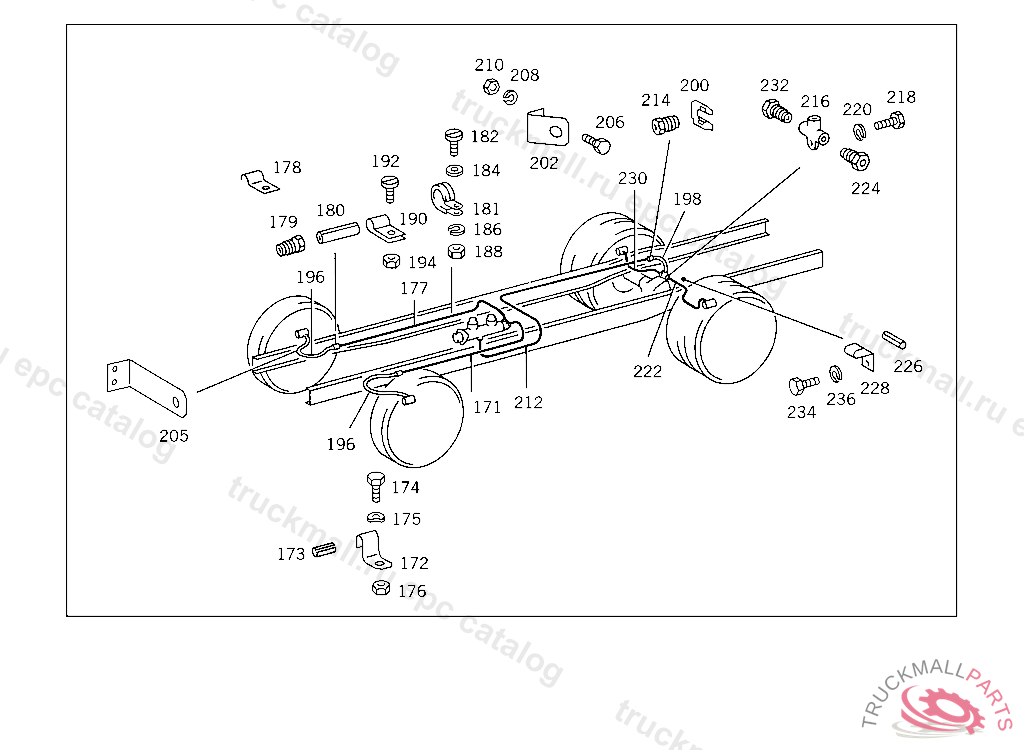

Поз.
Артикул
Описание
171
LINE FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL,A 071619
171
LINE FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL,A 071620
171
LINE FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL,A 071620
172
CLAMP BRAKE LINE MOUNTING
173
HOSE BRAKE LINE TO REAR AXLE,4 644238
174
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
175
SPRING WASHER STEERING COLUMN BRACKET TO CAB
176
NUT BRACKET TO FRAME
177
LINE FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL,A 071619
177
LINE FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL,A 071620
177
LINE FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL,A 071620
178
CLAMP LINE TO FRONT AXLE,RIGHT
179
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
180
HOSE
181
CLAMP BREATHER LINE TO REAR AXLE
182
SCREW LINE TO CROSS AND SIDE MEMBERS
184
WASHER LINE TO CROSS AND SIDE MEMBERS
186
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
188
NUT CLAMP TO BRACKET
190
CLAMP LINE TO HOSE
192
SCREW HOSE TO BRAKE LINE
194
NUT MODULE TO HOUSING
196
BRAKE HOSE
196
BRAKE HOSE
196
BRAKE HOSE
196
BRAKE HOSE FRONT
196
BRAKE HOSE FRONT
196
BRAKE HOSE FRONT
196
BRAKE HOSE
196
BRAKE HOSE
196
BRAKE HOSE
198
BRAKE HOSE REAR
200
BREMSSCHLAUCHHALTER. LOCK , Replaced By: A0004280473
200
BRACKET. LOCK , Replaced By: A6525040038
202
BRACKET , THE OLD PART MUST NO LONGER BE INSJTALLED, Replaced By: A3834280140
205
BRACKET , Replaced By: A3524282040
205
BRACKET ,A 009531
206
SCREW CLAMP TO BRACKET AND TO PIPE
208
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
210
NUT TAIL LAMP TO BRACKET
212
LINE FROM BRAKE MASTER CYLINDER TO REAR AXLE
212
LINE FROM BRAKE MASTER CYLINDER TO REAR AXLE
212
LINE FROM BRAKE MASTER CYLINDER TO REAR AXLE
214
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
216
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
216
DISTRIBUTOR REAR AXLE
216
DISTRIBUTOR REAR AXLE
218
SCREW , Replaced By: N304017008027
220
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
222
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
222
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
224
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
226
HOSE BRAKE LINE TO REAR AXLE,4 644238
228
CLAMP BRAKE LINE MOUNTING
230
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL
230
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL,A 059728
232
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
234
SCREW BRACKET TO CHARGING AIR INTERCOOLER
236
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT
999
YOKE PISTON ROD
999
ROD PISTON ROD
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SPRING TWO-CIRCUIT BRAKE VALVE
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
VALVE , Replaced By: A0004320807
999
STOP BRAKE PEDAL
999
BRACKET RELEASE SPRING
999
HOSE , Replaced By: A3769978182
999
DRAG LINK , Replaced By: A3454608605
999
DRAG LINK , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
RESERVOIR"1,2",A 069205A 90243
999
SHOULDER RINGTO 341 400 71 02,341 400 72 02
999
SIDE RINGTO 341 400 03 02,341 400 05 02, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
DISC WHEEL (8-HOLE RIM), USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
PIPE ,A 069204
999
BRACKET RIGHT
999
BRACKET LEFT
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
BALL PIVOT
999
DRAG LINK , Replaced By: A3274601605
999
SPHERICAL RING REAR DISC WHEEL
999
VALVE , Replaced By: A0024314006
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
VALVE (RELAY VALVE) WABCO
999
SWITCH RANGE SELECTOR LOCK
999
DUST CAP
999
SPRING
999
BALL SOCKET BOTTOM
999
BALL SOCKET TOP
999
DRAG LINK END
999
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLAMP , Replaced By: A0003380645
