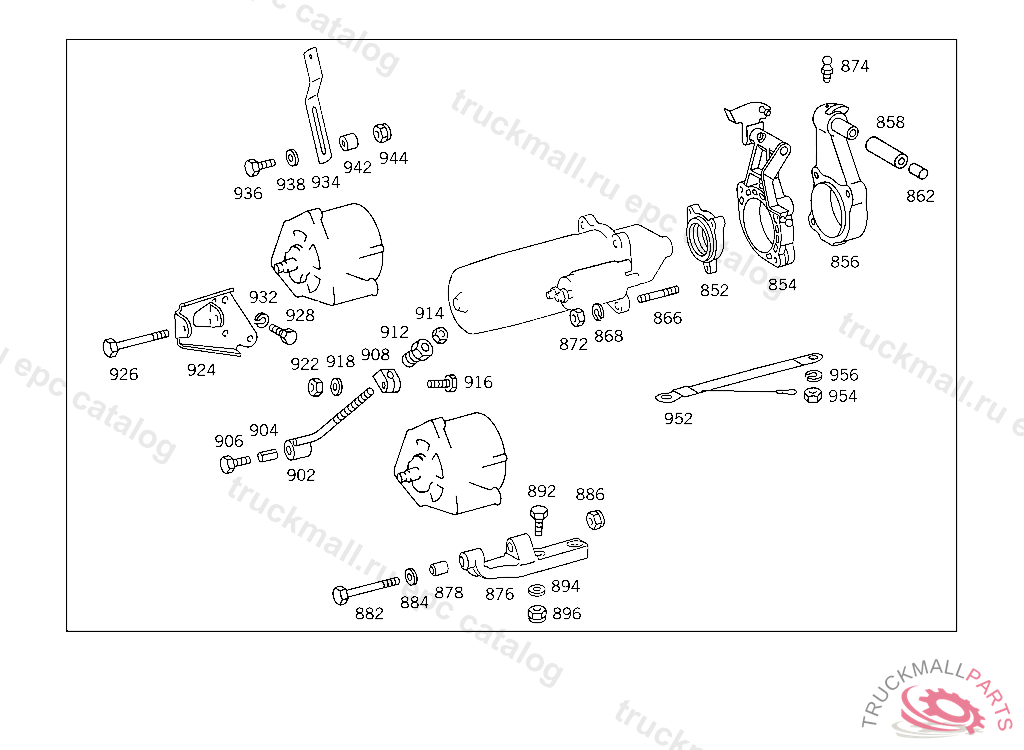

Поз.
Артикул
Описание
852
INTERMEDIATE PIECE STARTING MOTOR
854
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
858
BEARING
862
BUSHING
866
STUD BOLT BELL HOUSING, FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999 10/20 UP TO IDENT NO. 922885 EXCEPT FOR 502153,502155,502162,502192-502195,502198-502204,502207-599999,918576,921744,921785,921797,922052, 922078,922195,922255,922267,922336,922675,922688,922719,922739,922763,922853. ALSO INSTALLED ON 934036,934433,934539,935068,935169,937098. 50/60 UP TO IDENT NO. 922468 ON 96 KW (130 PS/DIN) 50/60 UP TO IDENT NO. 923153 ON 124 KW (168 PS/DIN)
868
LOCK WASHER , Replaced By: N912004010102
872
NUT REINFORCEMENT ANGLE TO SIDE MEMBER,A 006846
874
GREASE NIPPLE INTERMEDIATE LEVER
876
BRACKET ALTERNATOR
878
BUSHING
878
BUSHING
882
SCREW ALTERNATOR MOUNTING
884
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
886
NUT , Replaced By: N910113010000
892
SCREWTO 376 131 74 01
894
WASHER , Replaced By: A6319900140
896
NUT , Replaced By: N913004008001
902
CLAMPING BOLT (CLAMPING BOLT)
902
CLAMPING BOLT , Replaced By: A3551500372
904
BUSHING
904
BUSHING
906
SCREW PEDAL BEARING BRACKET TO SIDE MEMBER,734154
908
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
908
CLAMPING PIECE , Replaced By: A3141550228
912
NUT ALTERNATOR
912
NUT TIGHTENER PULLEY TO LEVER
914
NUT AT TRUCK-TRACTOR BRAKE VALVE
914
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
916
SCREW CLAMPING BOLT TO ALTERNATOR
918
WASHER
922
NUT STRAP TO SUPPORT
924
BRACKET ALTERNATOR
926
SCREW FENDER TO BRACKET, NOT USED
928
SCREW COVER TO HOUSING M8X45
932
LOCK WASHER
934
BRACKET (CLAMPING SHACKLE)
936
SCREW PROPELLER SHAFT TO COUPLING FLANGE
938
WASHER REAR FOGLAMP TO BRACKET
938
WASHER , Replaced By: A6319900140
942
SPACER RING
944
NUT , Replaced By: N913004008001
952
GROUND CABLE FROM ALTERNATOR TO FRAME SIDE MEMBER, UP TO IDENT NO. 727921 EXCEPT FOR,500001-599999,FROM IDENT NO. SEE ENGINE MICROFICHE
952
GROUND CABLE
