Поз.
Артикул
Описание
5

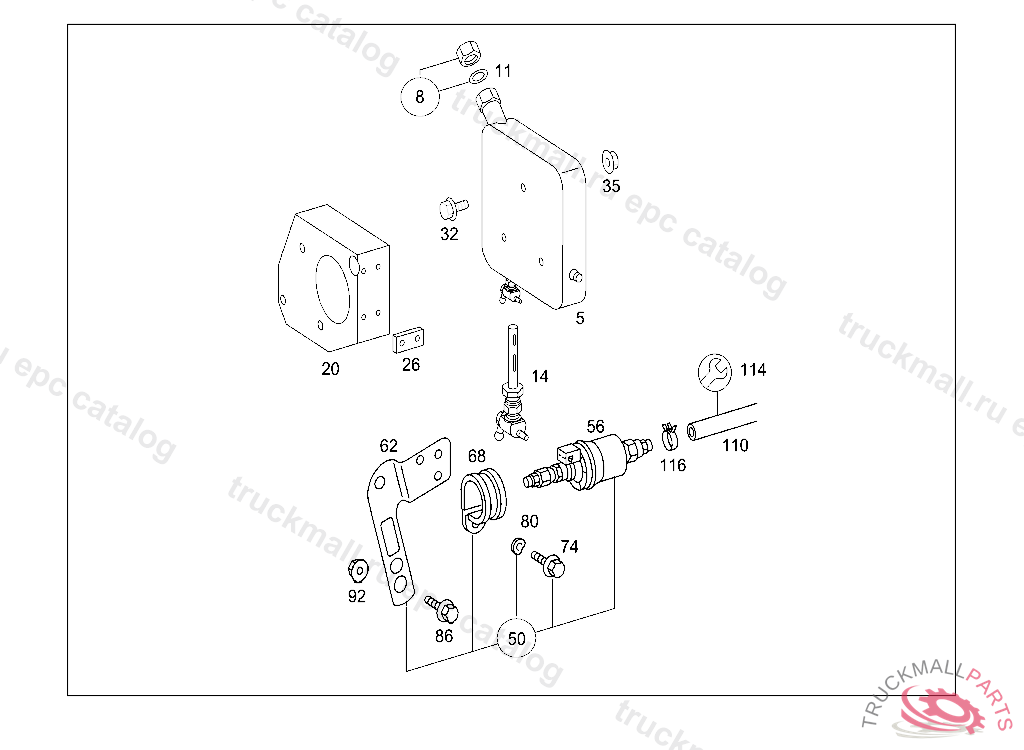

FUEL TANK AUXILIARY WARM WATER HEATER 10L, FOR COMPONENT PARTS SEE SPARE PARTS LISTV 229322
8
FILLER CAP
11
GASKET
11
GASKET , Replaced By: A9574710030
14
COCK
20
BRACKET ADDITIONAL FUEL TANK
26
SHIM GUSSET PLATE TO SIDE MEMBER, NOT CARRIED AS A SPARE PART
32
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
35
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
AUXILIARY PUMP , Replaced By: A0014702594
50
AUXILIARY PUMP PARTS KIT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
50
AUXILIARY PUMP METERING PUMP
56
FUEL PUMP
62
AUXILIARY PUMP FUEL-OIL PUMP
62
BRACKET FUEL-OIL PUMP, Replaced By: A0014702794
68
CLAMP CLAMP TO CROSS MEMBER 42/20
74
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
80
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
86
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
86
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
92
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
110
PLASTIC TUBE2X4MM, ORDER BY THE METER
110
HOSE FUEL LINE, ORDER BY THE METER
114
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
116
LOOM TIE. CLIP
116
HOSE CLAMP. CLAMP CONNECTION OF FUEL LINES 9MM
