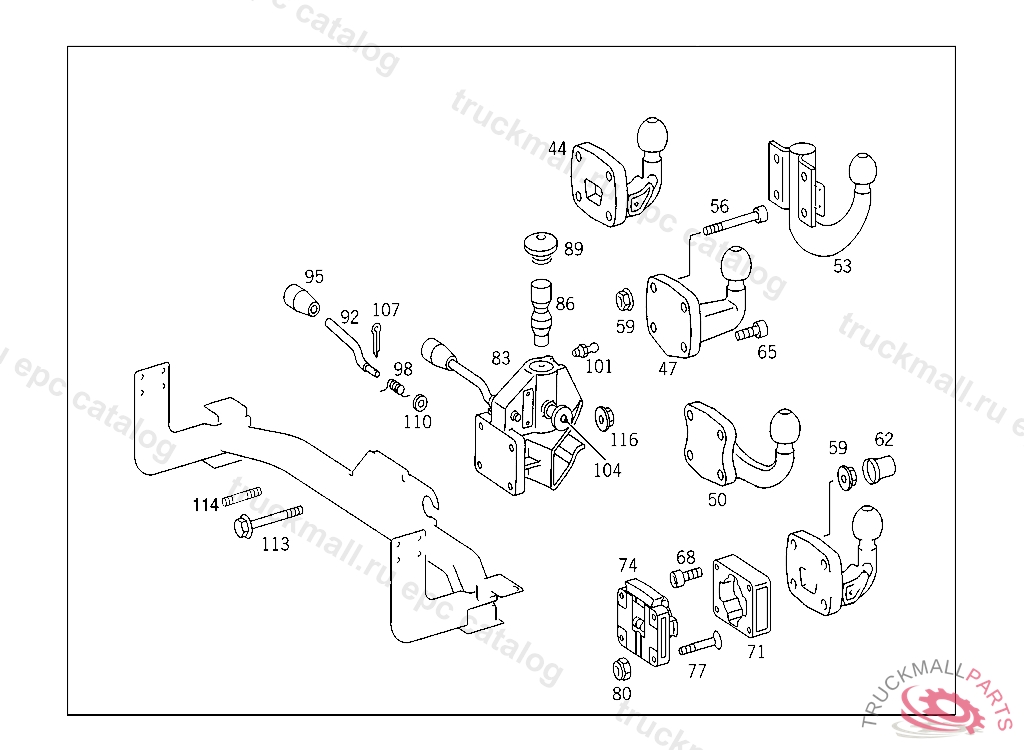

Поз.
Артикул
Описание
44
TRAILER COUPLING REAR
47
TRAILER COUPLING
50
53
TRAILER COUPLING
56
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
56
SCREW
56
SCREW STRAP TO SUPPORT M 10X140
56
SCREW TO SECURE SET NUT M 10X1.5X45
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
CAP TRAILER COUPLING TO COUNTER PLATE
65
CAP BOLT. SCREW COVER ON REAR PART OF TRANSMISSEION CASING M 10X35,041837
65
SCREW RUBBER MOUNTING TO BODY M 10X45
68
SCREW ROLLER ON SUPPORT
71
PLATE
74
PLATE WITH COVERING CAP 3,25T
77
SCREWM 10X50
77
SCREW BASE PLATE TO TRAILER COUPLING
80
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
83
COUPLING MOUTH (MOUTH-TYPE COUPLING)
86
COUPLING PINROCKINGER TYP 243 U115 EO/EK
89
COVERROCKINGER TYP 243 U115 EA/EL
92
LEVER , Replaced By: A0003153217
92
LEVERROCKINGER TYP 243 U115 EA/EL
95
HANDLE
98
SPRINGROCKINGER TYP 243 U115 EO/EK
101
GREASE NIPPLEROCKINGER
104
LOCK
104
LOCK
107
COTTER PIN STRAP TO BRACKET
110
WASHER BRACKET TO AIR INTAKE SCOOP
113
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
114
STUD TRAILER COUPLING TO REAR CROSS MEMBER
116
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
