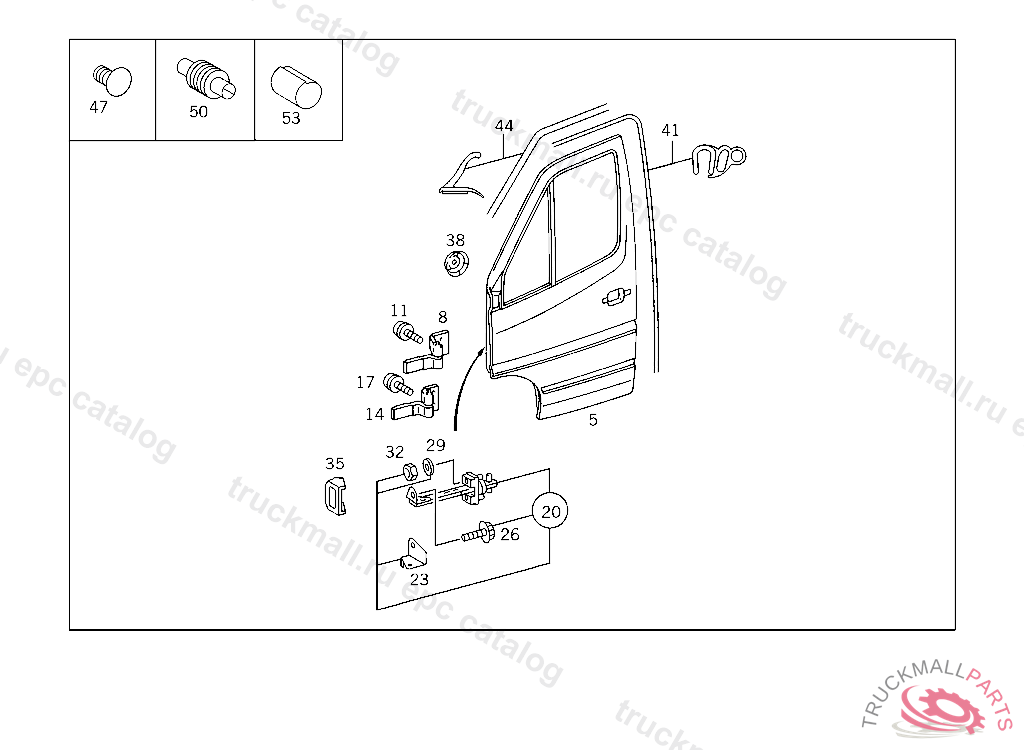

Поз.
Артикул
Описание
5
DOOR SHELL LEFT, TO BE ADAPTED DURING ASSEMBLY
5
DOOR SHELL RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
HINGE RIGHT TOP
8
HINGE LEFT TOP
11
SCREW DOOR SLIDE MECHANISM TO DOOR
14
HINGE RIGHT BOTTOM
14
HINGE LEFT BOTTOM
14
HINGE LEFT BOTTOM
14
HINGE RIGHT BOTTOM
17
SCREW FENDER TO BRACKET
17
SCREW ATTACHMENT GRAB HANDLE
20
DOOR CHECK LEFT
20
20
20
20
20
DOOR CHECK , Replaced By: A9017200616
20
DOOR CHECK , Replaced By: A9017200616
20
DOOR CHECK , Replaced By: A9017200916
20
DOOR CHECK , Replaced By: A9017201016
20
SOOR CHECK, RIGHT , Replaced By: A9017201116
20
DOOR CHECK. SOOR CHECK, RIGHT
23
DOOR CHECK. HOLDER RH RIGHT
23
DOOR CHECK LEFT
26
SCREW HINGE TO DOOR M8 X 20
26
SCREW. BOLT
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
32
NUT OIL TANK TO BRACKET
35
SEAL DOOR STRAP AT A-PILLAR, RIGHT
38
EXPANSION PLUG
38
LOCKING CAP , Replaced By: A0009873844
41
SEAL LEFT
44
SEAL CO-DRIVER'S DOOR AND SLIDING DOOR RIGHT
47
STOP PLUG. PLUG
50
HOSE PROTECTIVE HOSE
53
CLAMP ELECTRIC CABLE MOUNTING
999
INSULATION DOORS
