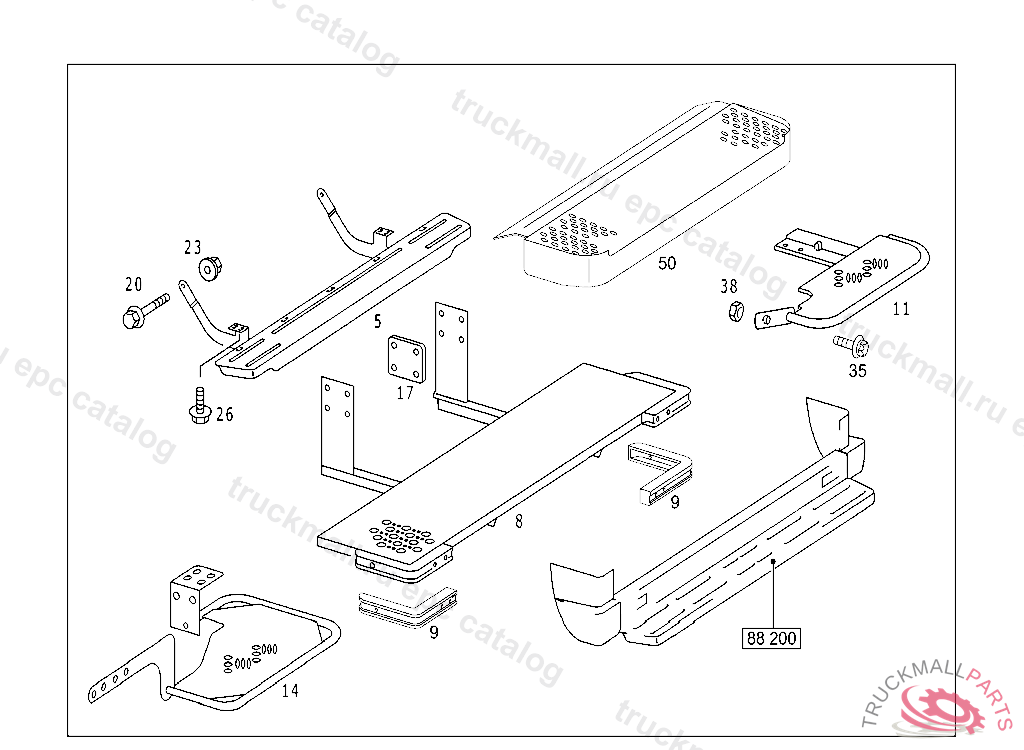

314, 308CDI, 311CDI, 313CDI, 316CDI - 903.661 FROM IDENT-NR. R337627, 5337627, A901274 - 52 SHEET METAL PARTS/AIR INTAKE
Поз.
Артикул
Описание
5
RUNNING BOARD WHEELBASE: 3000MM
5
RUNNING BOARD
8
RUNNING BOARD WIDE
8
RUNNING BOARD WHEELBASE: 3550MM
9
RUBBER BUMPER
11
RUNNING BOARD USED WITH TRAILER COUPLING
14
RUNNING BOARD USED WITH TRAILER COUPLING
17
PLATE 0
20
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
23
NUT BRACKET TO SIDE MEMBER M12X1.5
26
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
26
SCREW. HEXAGON HEAD BOLTM10X25
26
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
35
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
35
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
38
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
