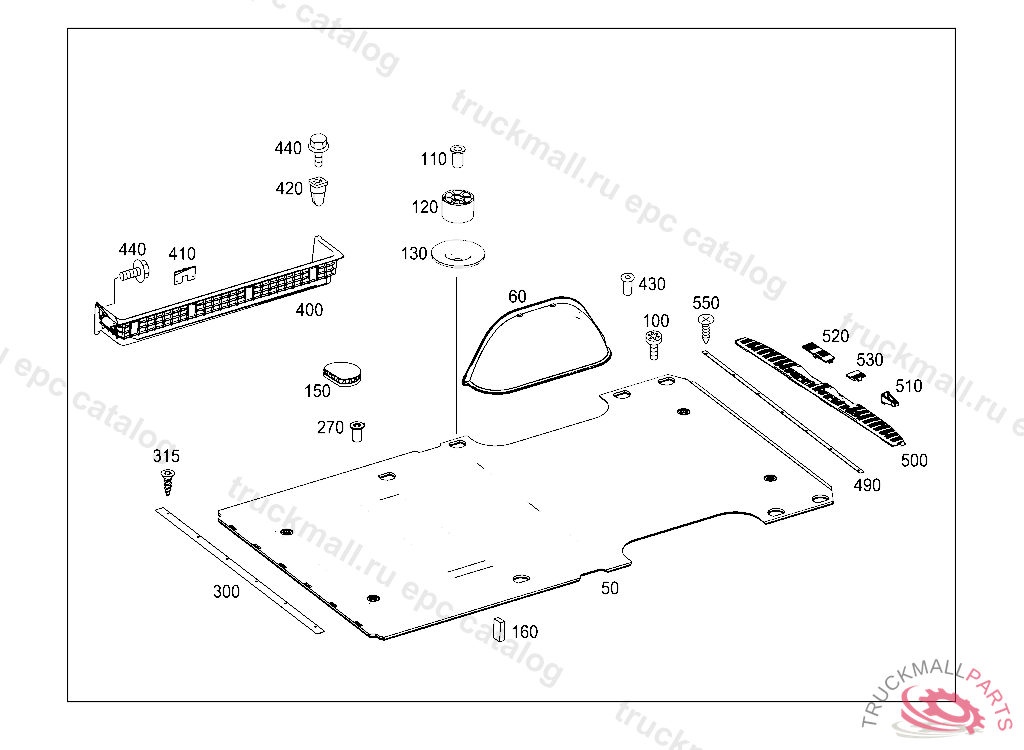

Поз.
Артикул
Описание
50
FLOOR , S 75691320121130
50
FLOOR , S 75691420121130 7K26QFT906A0500 ART GREY
60
WHEEL WELL FLOOR COVERING REAR LEFT
100
HEXALOBULAR BOLT STRUT TO BODY-IN-WHITE, LEFT M8X40
110
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
120
BUSHING CENTRAL FLOOR
130
HANDLE RECESS CENTRAL FLOOR
150
FLOOR FILLER
160
FOAM PLASTICS HEADLINER CENTER
270
SLEEVE CENTRAL FLOOR
300
COVER STRIP FRONT
300
COVER STRIP FRONT
300
COVER STRIP FRONT
315
HEXAL. SOCKET CSK. BOLT PANELLING TO ENTRANCE 5X14
315
COUNTERSUNK WOOD SCREW4,1X16MM
400
PANELING ENTRANCE SLIDING DOOR LEFT, WITH ENTRANCE LAMP, TO BE ADAPTED DURING ASSEMBLY 7J69QFT906A0400 ART GREY
400
PANELING ENTRANCE SLIDING DOOR LEFT, 7J69QFT906A0400 ART GREY
400
PANELING ENTRANCE SLIDING DOOR RIGHT, WITH ENTRANCE LAMP, 7J69QFT906A0400 ART GREY
400
PANELING ENTRANCE SLIDING DOOR RIGHT, TO BE ADAPTED DURING ASSEMBLY 7J69QFT906A0400 ART GREY
410
CLIP ENTRANCE SLIDING DOOR LEFT
420
TREENAIL BRACKET TO FIRE WALL
430
BLIND RIVET ATTACHMENT,RAIL
440
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
440
HEXAL. SOCKET CSK. BOLT PANELLING TO ENTRANCE 5X14
440
COUNTERSUNK WOOD SCREW4,1X16MM
490
LEDGE COVER STRIP, REAR FLOOR, Replaced By: A9066861574
490
PROTECTIVE STRIP COVER STRIP, REAR FLOOR
500
LEDGE REAR, 9E80QFT906A0001 BLACK
510
TREENAIL PLATE TO BODY
520
COVER INNER TRUNK SILL, 9E80QFT906A0001 BLACK
530
COVER OUTER TRUNK SILL, 9E80QFT906A0001 BLACK
550
HEXAL. SOCKET CSK. BOLT PANELLING TO ENTRANCE 5X14
550
COUNTERSUNK WOOD SCREW4,1X16MM
