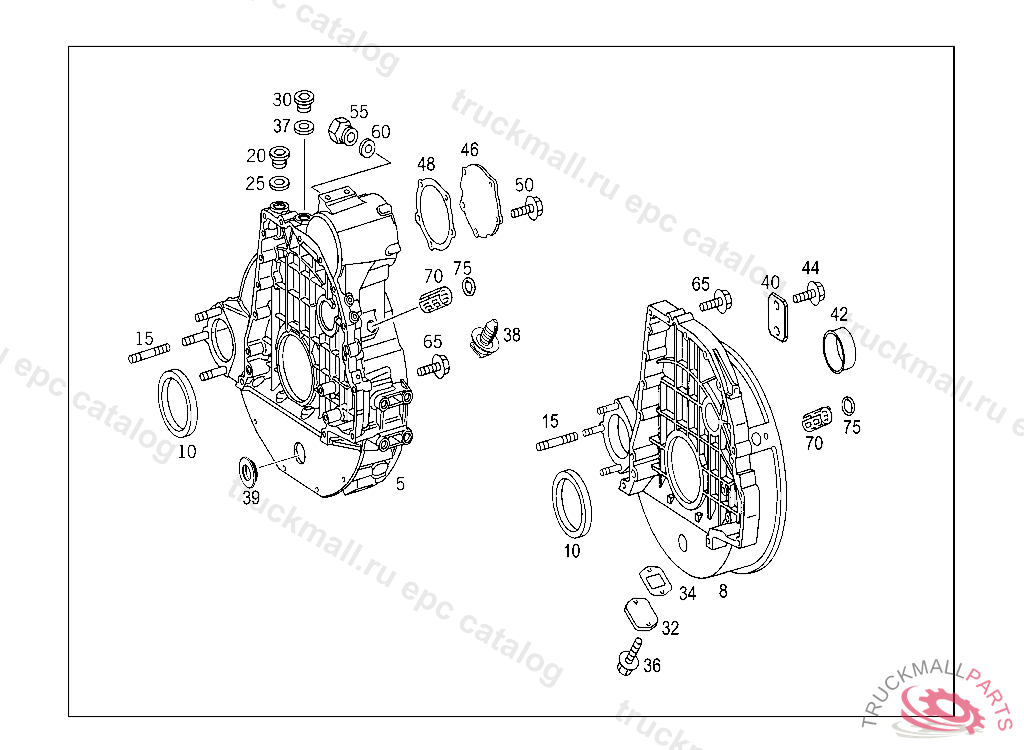

Поз.
Артикул
Описание
5
TIMING CASESAE 1
8
TIMING CASE
10
SEAL RING CRANKSHAFT SEALING,REAR,708528 IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: A 013 997 14 47 + A 403 032 03 09 I.D., 115MM
20
SCREW PLUG
25
SEALING RING ,760252
30
SCREW PLUGTO 376 131 74 01
32
EXPANSION PLUG CRANK OPENING
32
COVER TIMING CASE
37
SEAL RING
38
CABLE BAND HOLDER WIRING HARNESS FASTENING
46
COVER TIMING CASE
48
GASKET CAP ON TIMING CASE
50
SCREW STOP TO BATTERY CASE
55
SCREW PLUG WATER SEPARATOR
55
SCREW PLUGTO 000 553 03 05,000 553 18 05,
60
SEALING RING
65
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
65
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
65
HEXAGON HEAD BOLT INTAKE PIPE SOCKET TO WATER PUMP M10X160
65
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
