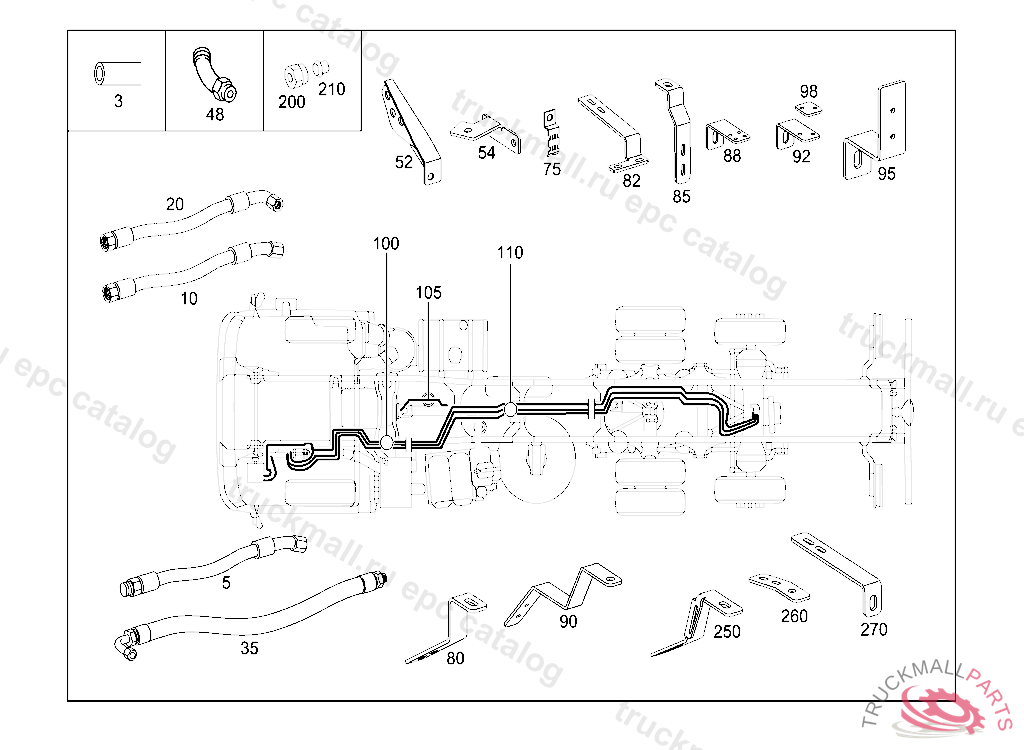

Поз.
Артикул
Описание
3
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
3
OIL LINE , Replaced By: A0005516256
5
OIL LINE STEERING GEAR L590MM
5
OIL LINE STEERING GEAR L645 MM
10
OIL LINE FROM MASTER CYLINDER TO CONNECTOR L510 MM
20
OIL LINE FROM MASTER CYLINDER TO CONNECTOR L400 MM
20
HIGH-PRESSURE HOSE FROM STEERING TO POWER CYLINDER L890MM
20
OIL LINE FROM MASTER CYLINDER TO CONNECTOR L405 MM
35
LINE HOSE LINE 310MM
48
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
52
BRACKET OIL LINE RIGHT
52
BRACKET LINE MOUNTING
54
BRACKET BRACKET TO STEERING BRACKET
75
BRACKET AIR DEHYDRATOR
80
BRACKET LINE MOUNTING
80
BRACKET FASTENING, RIGHT FRONT LINE
80
BRACKET CENTER FASTENING
80
BRACKET CENTER FASTENING
82
BRACKET FASTENING, CABLES, REAR
85
BRACKET LINE MOUNTING
88
BRACKET LINE MOUNTING
90
BRACKET FASTENING, CABLES, REAR
92
BRACKET LINE MOUNTING
95
BRACKET LINE MOUNTING
98
BASE LINE MOUNTING
100
OIL LINE FRONT L14385MM
100
OIL LINE FRONT L2635MM
100
OIL LINE FRONT L1278MM
100
OIL LINE FRONT L2531MM
100
OIL LINE FRONT L1880MM
100
OIL LINE FRONT L1375MM
100
OIL LINE FRONT L2487MM
105
OIL LINE TO PRESSURE RESERVOIR L1501MM
105
OIL LINE TO PRESSURE RESERVOIR L1535MM
105
OIL LINE TO PRESSURE RESERVOIR L1588MM
110
OIL LINE FRONT L2114MM
110
OIL LINE FROM MASTER CYLINDER TO CONNECTION POINT L2507MM
110
OIL LINE FROM MASTER CYLINDER TO CONNECTION POINT L1977MM
110
OIL LINE FROM MASTER CYLINDER TO CONNECTION POINT L2001MM
110
OIL LINE FRONT L2107MM
110
OIL LINE FROM MASTER CYLINDER TO CONNECTION POINT L2505MM
110
OIL LINE FROM MASTER CYLINDER TO CONNECTION POINT L2522MM
110
OIL LINE FRONT L2162MM
110
OIL LINE FROM MASTER CYLINDER TO CONNECTION POINT L1909MM
200
NUT COMPRESSED AIR LINES M22X1.5
210
GLAND COMPRESSED AIR LINES
250
BRACKET LINE MOUNTING
260
BRACKET LINE MOUNTING
270
BRACKET MOUNTING PARTS
