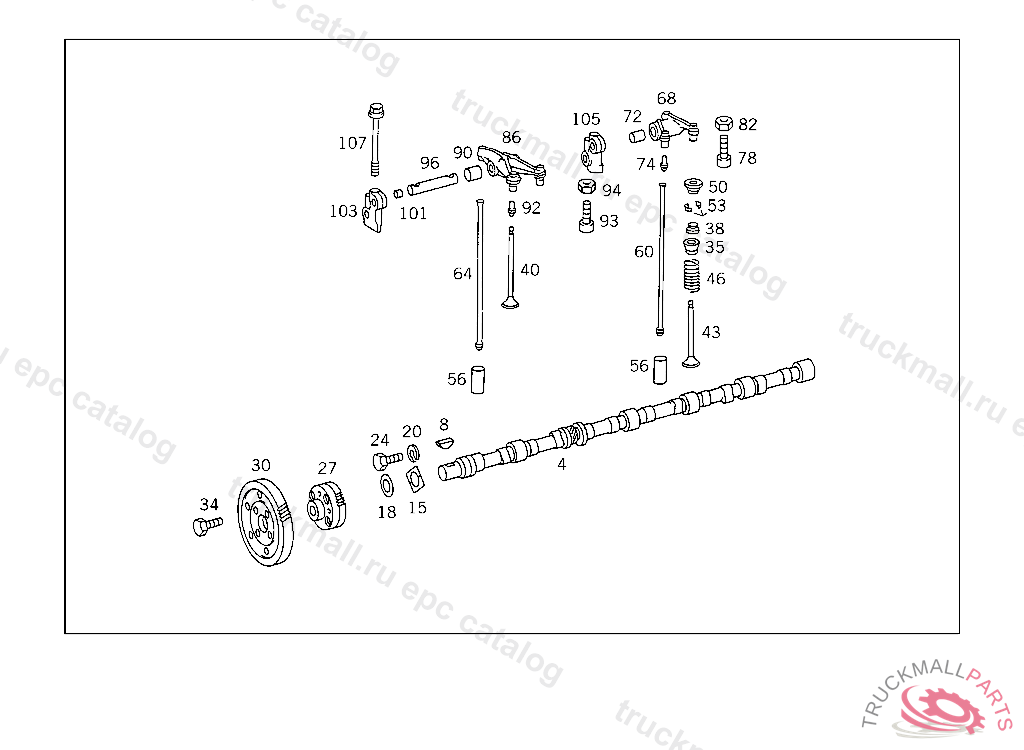

Поз.
Артикул
Описание
4
CAMSHAFT
8
WOODRUFF KEY CRANKSHAFT
15
THRUST WASHER
18
SPACER WASHER
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
24
SCREW BRACKET TO SIDE MEMBER,K 168169
24
SCREW , Replaced By: A0089907401
27
DRIVE GEAR
30
CAMSHAFT GEAR
34
SCREW STRUT TO CROSS MEMBER M 10X25
34
SCREW , Replaced By: N304017010040
35
VALVE STEM SEALING SEE ALSO GROUP 05, UP TO ENGINE 027399,ALSO INSTALLED ON 027459,027464,027467
38
BOOT INTAKE TO 352 05312 29-15 29
40
EXHAUST VALVE SEE ALSO GROUP 05
43
INTAKE VALVE SEE ALSO GROUP 05
46
VALVE SPRING
50
SPRING RETAINER
53
VALVE COLLET (VALVE CONE HALF)
53
VALVE COLLET
53
VALVE COLLET
56
VALVE TAPPET
56
VALVE TAPPET
60
PUSH ROD INTAKE
60
PUSH ROD INTAKE
64
PUSH ROD EXHAUST
64
PUSH ROD EXHAUST
68
ROCKER ARM INTAKE VALVE
72
BUSHING
74
BALL PIN
74
BALL PIN
78
SET SCREW
82
NUT
86
ROCKER ARM EXHAUST VALVE
90
BUSHING
92
BALL PIN
92
BALL PIN
93
SET SCREW
94
NUT
96
ROCKER ARM SPINDLE , Replaced By: A3450507031
101
EXPANSION PLUG
103
ROCKER ARM BRACKET FRONT
105
ROCKER ARM BRACKET REAR
107
SCREW ROCKER ARM BRACKET TO CYLINDER HEAD
999
VALVE SPRING , Replaced By: A3220530420
999
INTAKE VALVE , Replaced By: A3460530001
999
EXHAUST VALVE , Replaced By: A3460530005
999
INTAKE VALVE , Replaced By: A3460530001
999
VALVE TAPPET , Replaced By: A3460540201
999
BUSHING , Replaced By: A3460550250
999
BOOT , Replaced By: A3520530296
999
EXHAUST VALVE , Replaced By: A3460530005
