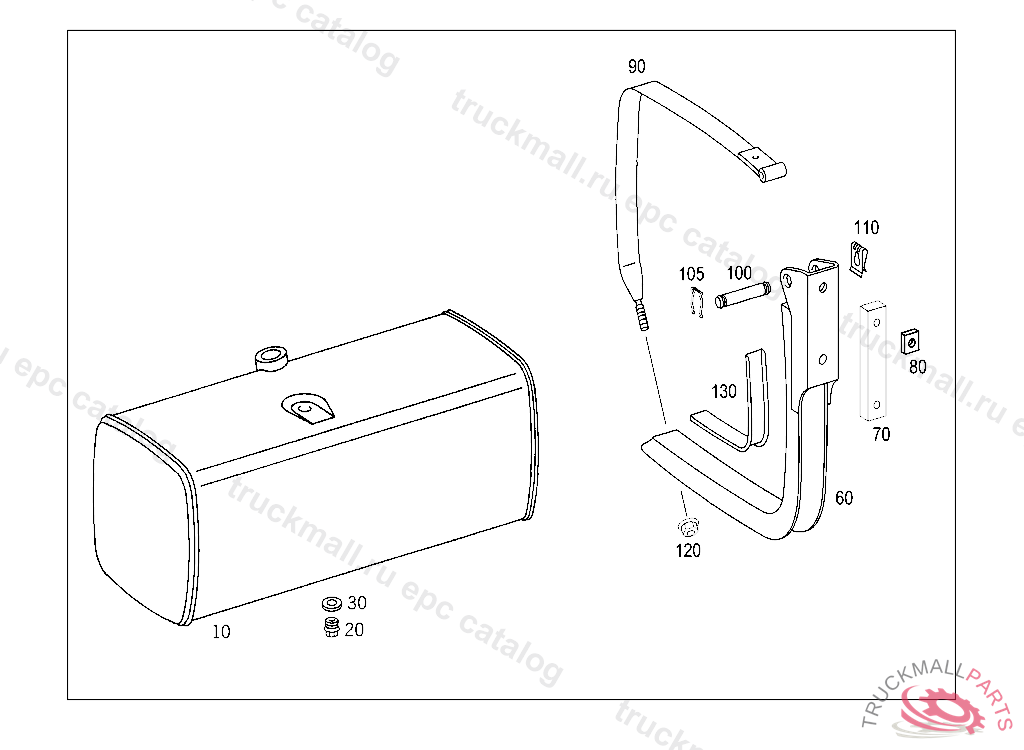

2628 K - 2633 K - 952.642 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
10
FUEL TANK RIGHT 300L
20
SCREW PLUG FUEL TANK
30
SEALING RING. SEAL RING FUEL TANK
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT REAR RIGHT TANK
60
SUPPORT REAR RIGHT TANK
70
SHIM MOUNTING PARTS 30MM
70
SHIM. BASE FUEL TANK TO FRAME 40MM
80
BASE MOUNTING PARTS 10MM
90
STRAP FUEL TANK TO CONSOLE
100
PIN STRAP TO SUPPORT
105
CLIP STRAP TO SUPPORT
110
CLIP STRAP TO SUPPORT
120
NUT STRAP TO SUPPORT M12X1.5
130
PAD BRAKE ANCHOR 53 MM
130
PAD STRAP 61 MM
