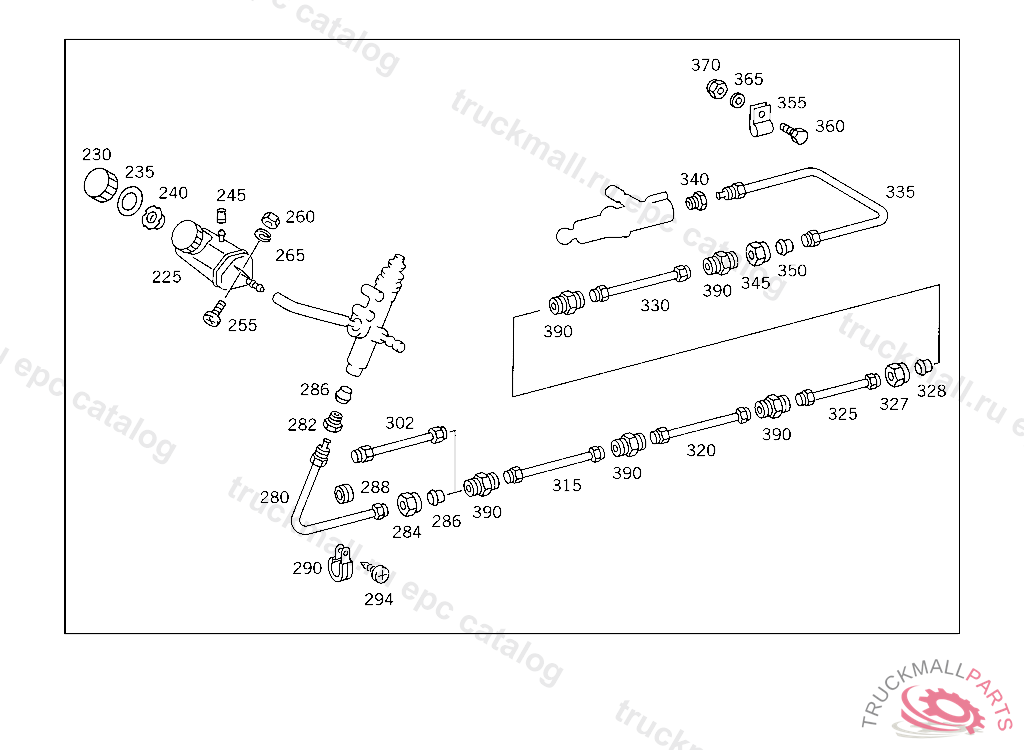

Поз.
Артикул
Описание
225
RESERVOIR RESERVOIR
230
LOCKING CAP
235
SEAL RING
240
STRAINER
245
CAP RESERVOIR DE-AERATION
255
SCREW
260
NUT , Replaced By: N304032006004
265
LOCK WASHER EXPANSION TANK TO BRACKET
280
LINE FROM LINE AT CLUCTH MASTER CYLINDER TO LINE AT CONNECTOR
282
UNION SCREW
284
UNION NUT LINE CONNECTION
286
GLAND LINE CONNECTION
288
GROMMET CABLE THROUGH ELECTRICAL COMPARTMENT,002062 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO IDENT NO. 017956 EXCEPT FOR 017867,017919
290
CLAMP ,K 147121, Replaced By: N000000000319
290
CLAMP DELIVERY AND SUCTION LINES TO FRAME
294
SHEET METAL SCREW OIL LINE MOUNTING
315
LINE FROM CONNECTOR I TO CONNECTOR II
320
LINE FROM FITTING TO FITTING
325
LINE FROM CONNECTOR III TO CONNECTOR IV
327
UNION NUT LINE CONNECTION
328
GLAND LINE CONNECTION
330
LINE FROM CONNECTOR IV TO CONNECTOR V
335
LINE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER
340
UNION SCREW
345
UNION NUT LINE CONNECTION
350
GLAND LINE CONNECTION
355
CLAMP , Replaced By: A3604300143
355
CLAMP , Replaced By: N916016008200
355
CLAMP ,K 147121, Replaced By: N000000000319
360
SCREW PROTECTION PLATE TO BRACKET
365
WASHER PLUG SOCKET TO BRACKET
370
NUT , Replaced By: N913004006001
390
CONNECTION FITTING ,880809
390
FITTING , Replaced By: A0039978972
