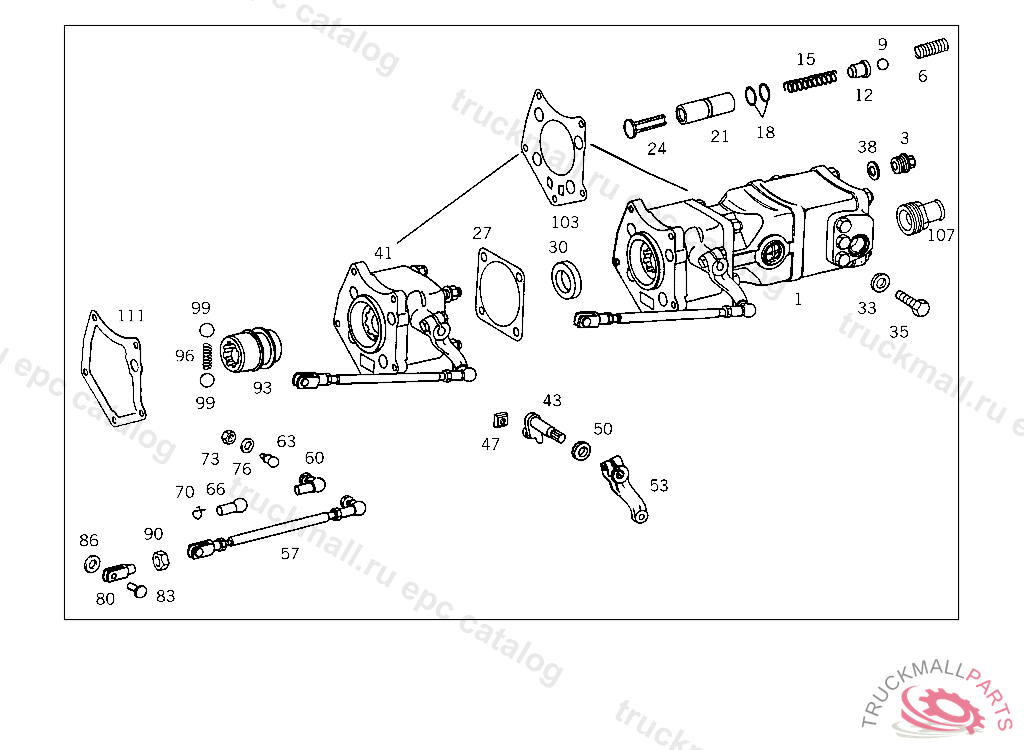

Поз.
Артикул
Описание
1
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM
1
HYDRAULIC PUMP , 867165, Replaced By: A0002366005, +001A0029973972
1
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM, 867166
1
HYDRAULIC PUMP , 867165, Replaced By: A0002366105, +001A0029973972
1
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 265/1
1
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM
1
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM
3
SCREW PLUG
3
SCREW PLUG , Replaced By: A0019974430
3
SCREW PLUG
3
SCREW PLUG
3
SCREW PLUG P.T.O.,DUMPER PUMP, 867165
6
SPRING , 637229
6
SPRING
6
SPRING
6
SPRING CHECK VALVE, ONLY USED ON DUMP TRUCK ASSEMBLIES
9
BALL (PRESSURE VALVE) 12.7 MM
9
BALL , Replaced By: A0019815085
9
BALL10 MM
12
VALVE
12
VALVE CHECK VALVE
15
SPRING
15
SPRING , ONLY USED ON DUMP TRUCK ASSEMBLIES
18
SEAL RING
18
SEAL RING
21
PISTON
21
PISTON , Replaced By: A0002361117
21
PISTON
24
VALVE
24
VALVE
27
GASKET
27
SEAL RING
27
GASKET CONNECTION FLANGE
27
GASKET CASE PART I TO CASE PART II
30
SEAL RING
30
SEAL RING40X58X9 MM
30
SEAL RING DUMPER PUMP
33
SEAL RING BRAKE CYLINDER STROKE INDICATOR
35
SCREW DUMPER PUMP
38
SEAL RING FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
41
FLANGE DUMPER PUMP
43
LEVER (SHIFTING SHAFT)
43
LEVER , Replaced By: A0002300220, +001A0002360016
47
FOLLOWER (SHIFTING SHAFT)
50
SEAL RING P.T.O. SHIFT LEVER
50
RADIAL SEAL RING , Replaced By: A0019978346
53
LEVER SHIFTING SHAFT
57
ROD PULL ROD TO SHIFT LEVER
60
ANGLE JOINT DUMPER PUMP
63
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
66
BALL SOCKET ROD TO BALL PIVOT
70
SECURING CLIP. CIRCLIP
73
NUT
76
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
76
SPRING WASHER , Replaced By: N000137008212
80
YOKE OPERATING ROD
83
PIN PULL ROD TO SHIFT LEVER
86
WASHER BRACKET TO CROSS MEMBER
90
NUT
93
DRIVE DUMPER PUMP
96
SPRING
99
BALL
103
GASKET
107
FITTING DUMPER PUMP
111
GASKET , Replaced By: A3522611180
111
GASKET , Replaced By: A3522611680
111
GASKET P.T.O. TO TRANSMISSION
111
GASKET COVER TO CASE REAR COVER
111
GASKET , Replaced By: A3522611980
999
WASHER PISTON SPRING, ONLY APPLICABLE TO COMPLETE DUMP TRUCKS
999
SCREW BRACKET TO APPARATUS SUPPORT
999
SHIFTING ROD P.T.O. CONTROL
999
SHIFTING ROD P.T.O. CONTROL
999
COVER AT TRANSMISSION CASE REAR COVER,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
LOCK WASHER COVER PLATE AND BASE FRAME TO RADIATOR BLOCK
999
SCREW , Replaced By: A0069909301
999
SNAP RING
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
