Mercedes N910105008008 - БОЛТ М8

510 CDI 900.655

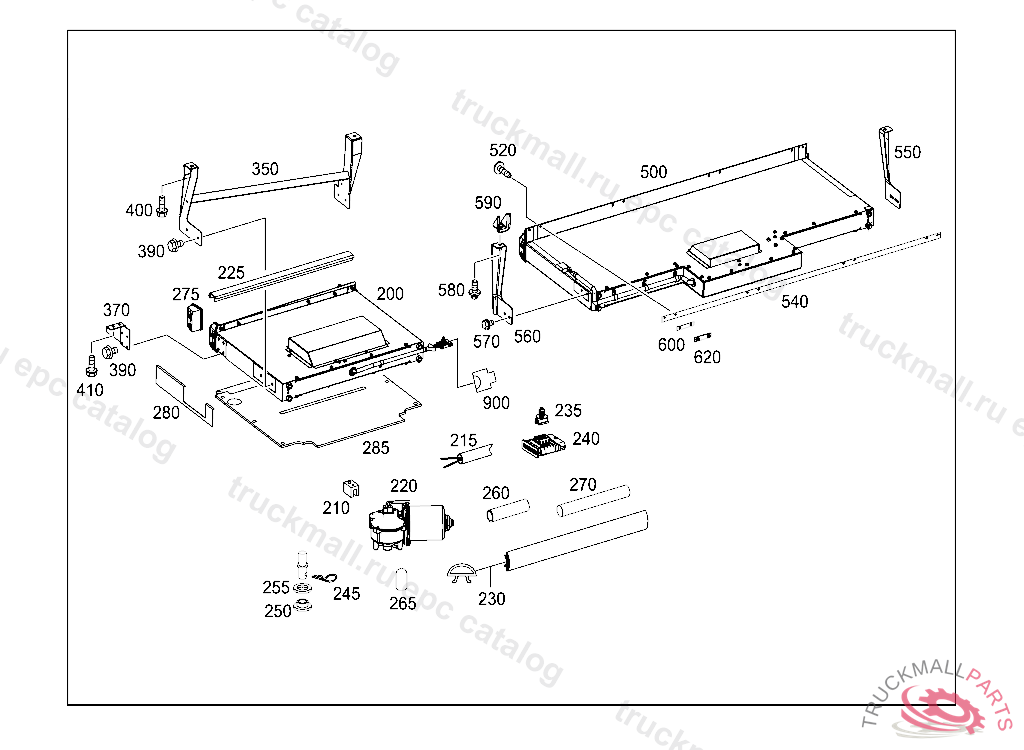

69 SIDE PANELLING/HEADLINER/ATTACHMENT - 300 OUTSIDE ATTACHMENT PARTS IL. 2

Поз.
Артикул
Описание
200
A9005200031
STEP CO-DRIVER'S DOOR
210
A9009050200
SWITCH BLOCK
215
A9005200000
HOSE ASSEMBLY
220
A9003400000
ELECTRIC DRIVE
225
A9005280000
CIRCUMFERENTIAL GASKET
230
A9005280100
CIRCUMFERENTIAL GASKET
235
A9005200300
BRACKET
240
A9005230000
BRACKET
245
A9009940011
SPLIT PIN
250
A9009900682
WASHER WITH COLLAR
255
A9009900582
SPACER DISK
260
A9005200400
HOSE ASSEMBLY
265
A9005200500
HOSE ASSEMBLY
270
A9005200600
HOSE ASSEMBLY
275
A9005230015
BEAM
280
A9005230095
REINFORCEMENT
285
A9005230043
FASTENING PLATE
350
A9005200066
BRACKET
370
A9005230040
BRACKET LEFT
370
A9005230140
BRACKET RIGHT
390
N000000004310
HEXAGON HEAD BOLT LINE MOUNTING M6X10
400
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
410
N910105008008
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
500
A9065201531
ASCENT
520
N000000007502
HEXALOBULAR BOLT STEP TO LONGITUDINAL MEMBER M6X25
540
A9067370830
SEALING FILM STEP
550
A9065230040
BRACKET STEP
560
A9065230140
BRACKET
570
N910143008020
SCREW SPEED SENSOR TO REAR AXLE
580
N910143010011
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
590
A9063104309
BRACKET STEP TO LONGITUDINAL MEMBER
600
A9065230024
PLATE, 2 HOLES STEP TO LONGITUDINAL MEMBER
620
A9063106909
BRACKET FASTENING, STEP
900
A0465458128
PLUG HOUSING CONNECTOR, PARKTRONIC, FRONT BUMPER 8-PIN MLK1.2, A 97500020070630 E 02900020071206808
