Поз.
Артикул
Описание

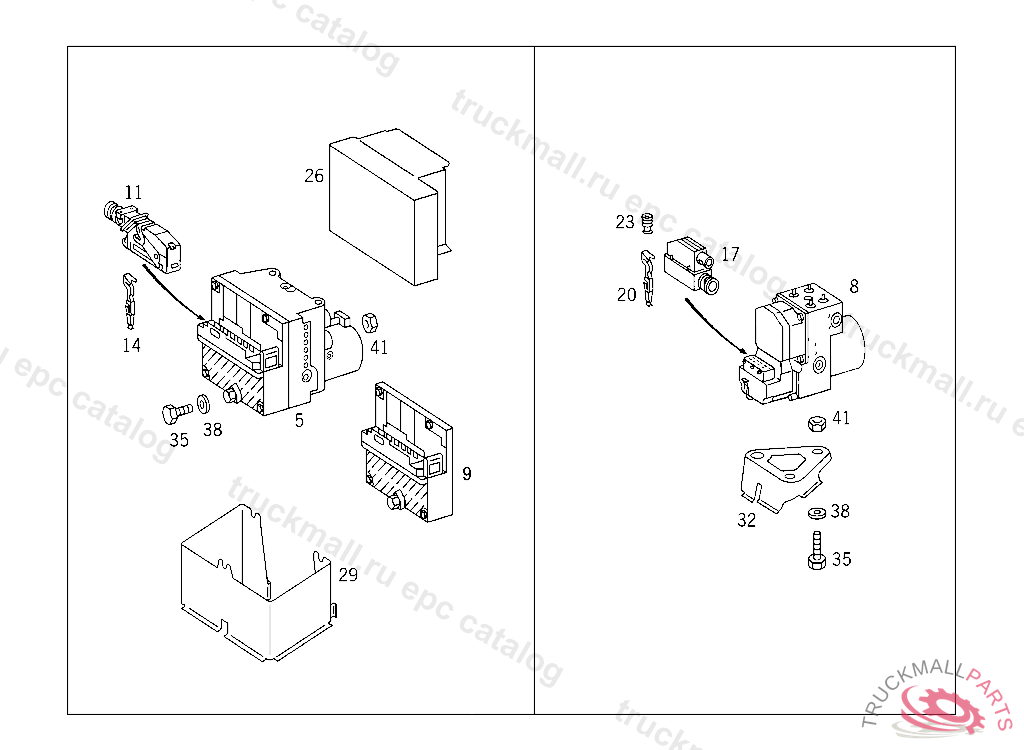

5
HYDRAULIC UNITABS/ABD,P 718186, Replaced By: A0054319312, +001A0015402445
5
HYDRAULIC UNIT , Replaced By: A0004460289
5
HYDRAULIC UNITABS/ABD,P 718186
8
HYDRAULIC UNIT , P 718187 R 000001
9
CONTROL UNIT PARTS KIT, ATTENTION! PAY ATTENTION TO INFORMATION SLIP AND WORKSHOP MANUAL!P 718186
11
PIN BUSHING HOUSING HYDRAULIC UNIT,P 718186
14
CONTACT SPRING , Replaced By: A0055458526
14
CONTACT SPRING CONNECTION FROM CABLE HARNESS TO STOP LAMP
14
CONTACT SPRING1-2.5 MM2
17
PIN BUSHING HOUSING HYDRAULIC UNIT, P 718187 R 000001
20
CONTACT SPRING1.0 MM2
20
CONTACT SPRING , P 718187 R 000001
20
CONTACT SPRING , P 718187 R 000001
23
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
23
GASKET , P 718187 R 000001
23
STOP PLUG. PLUG WHITE 0.5-1.0 MM2, PIN 01 - 56
23
GASKETKZ
26
COVERING ,P 718186
29
BRACKET HYDRAULIC UNIT,P 718186
32
BRACKET HYDRAULIC UNIT, P 718187 R 000001
35
SCREW COVER PLATE TO COVER PLATE M 6 X 12
38
WASHER COVERING TO CAB
38
WASHER COMPRESSED AIR LINE TO BRACKET
41
NUT TWO-WAY VALVE TO BRACKET
