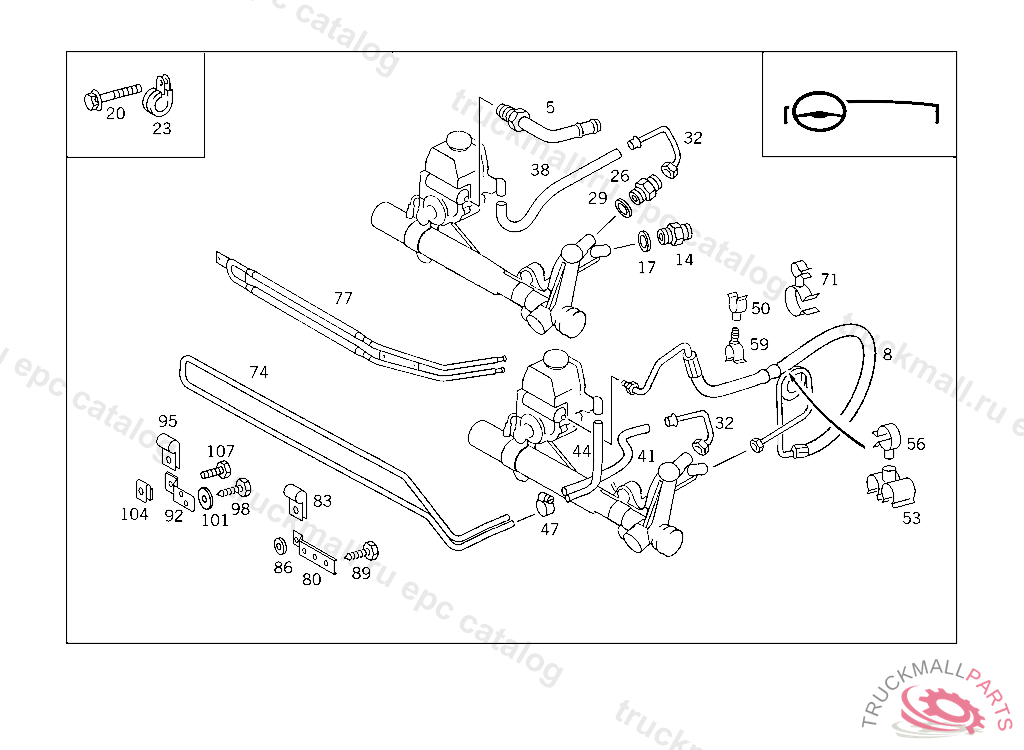

Поз.
Артикул
Описание
5
8
HOSE FROM HYDRAULIC PUMP TO STEERING GEAR
8
14
FITTING HOSE TO STEERING
17
SEALING RING. SEAL RING ENGINE BREATHING
20
SCREW STARTING CABLE TO ENGINE
20
SCREW , Replaced By: N000000001116
23
CLAMP PIPE ON FAN SHROUD
26
FITTING. SCREW CONNECTION RETURN LINE TO STEERING
29
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
32
LINE FROM HYDRAULIC PUMP TO STEERING GEAR
32
32
38
HOSE RADIATOR, ORDER BY THE METER
41
HOSE RADIATOR, ORDER BY THE METER
44
HOSE RADIATOR, ORDER BY THE METER
44
HOSE LOW PRESSURE
47
HOSE CLAMP FUEL LINE TO SENDER UNIT
50
CLAMP , Replaced By: A0005465143
53
CLAMP RETURN LINE TO CLUTCH HYDRAULIC LINE
56
CLAMP LINE MOUNTING
56
HOSE BRACKET. LOOM TIE
59
CLAMP , Replaced By: A0005465143
59
CLAMP , Replaced By: A6171870190
71
CLAMP
74
LINE , Replaced By: A9014661057
74
COOLING PIPE , Replaced By: A6904660057
80
BRACKET
83
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
86
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
89
TAPPING SCREW. SHEET METAL SCREW CONDENSER TO RADIATOR
