Mercedes A9415200033 - Кронштейн

1831 LS - 1843 LS 954.042

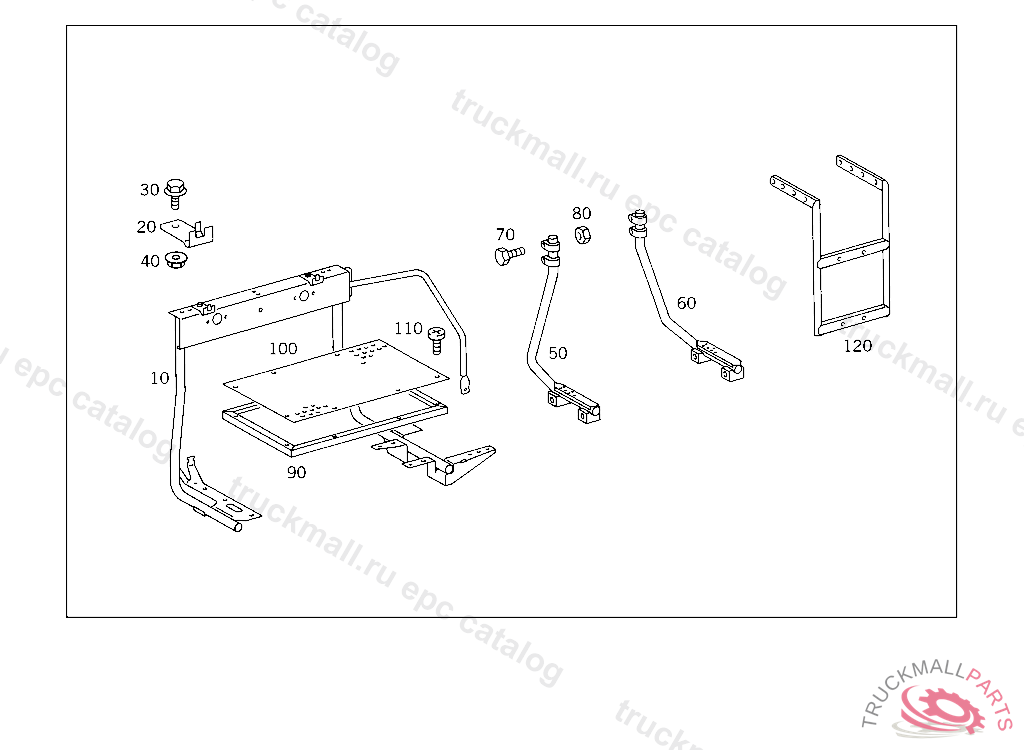

52 SHEET METAL,AIR INTAKE - 001 STEP BEHIND CAB IL.1

Поз.
Артикул
Описание
10
A0835200166
BRACKET STEP PLATE
20
A9415231540
BRACKET PLUG SOCKET TO BRACKET
30
N914146006102
SCREW CLAMP MOUNTING M 6X16
40
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
40
N913023006002
NUT BRACKET TO FIRE WALL
50
A0835200266
GRIP RAIL LEFT
60
A0835200366
GRIP RAIL RIGHT
70
N308676012018
SCREW STRUT TO FRAME M 12X62
80
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
90
A6995201031
RUNNING BOARD (BASE FRAME) BEHIND CAB
100
A6995230301
RUNNING BOARD STEP TO APPARATUS SUPPORT
110
N007985008194
SCREW ROCKER PANEL TO ROCKER PANEL
120
A9415200033
SUPPORT STEP
999
A0835200066
BRACKET , Replaced By: A0835200166, +001A0835200266, +001A0835200366
