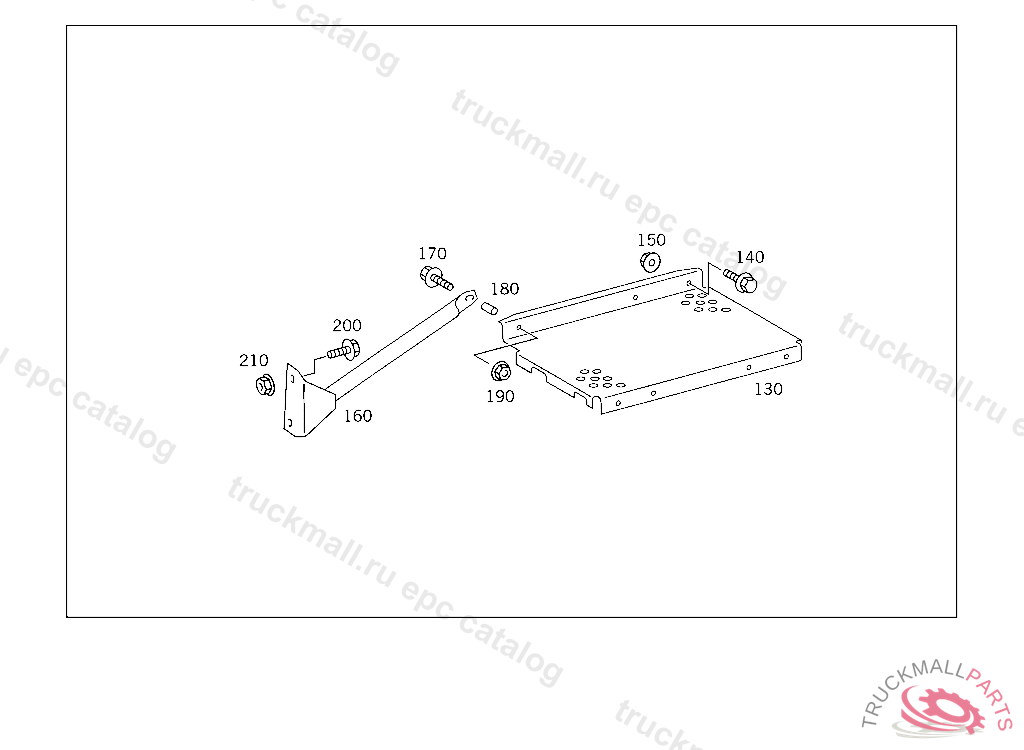

1831 LS - 1843 LS - 954.042 - 52 SHEET METAL,AIR INTAKE
Поз.
Артикул
Описание
130
RUNNING BOARD REAR RIGHT
140
SCREWM 10X20
150
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
160
STAY SUPPORT TO FRAME
170
SCREWM 10X20
180
PIPE BRACKET TO TRANSMISSION
190
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
200
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
200
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
210
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
BRACKET , Replaced By: A0835200166, +001A0835200266, +001A0835200366
