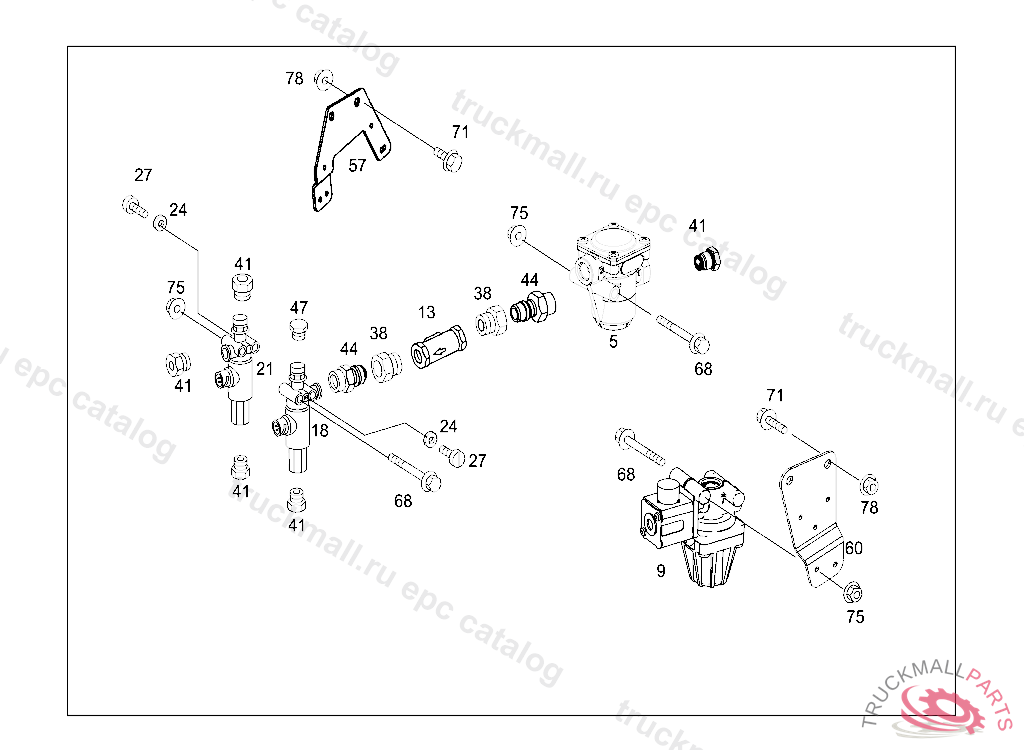

Поз.
Артикул
Описание
5
VALVE PRESSURE LIMIT VALVE
9
VALVE PRESSURE LIMIT VALVE ADBLUE, 30.03,V 224921
13
NON-RETURN VALVE CHECK VALVE
18
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
21
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
24
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
27
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
38
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
41
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
44
SCREW-IN FITTING
47
SCREW PLUG SOLENOID VALVE M16
57
60
68
SCREW. HEXAGON HEAD BOLT BRACKET TO STABILIZERM8X1,5X110 MM
68
SCREW , Replaced By: N910143008010
71
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
71
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
75
NUT HORN TO BRACKET M8
78
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
