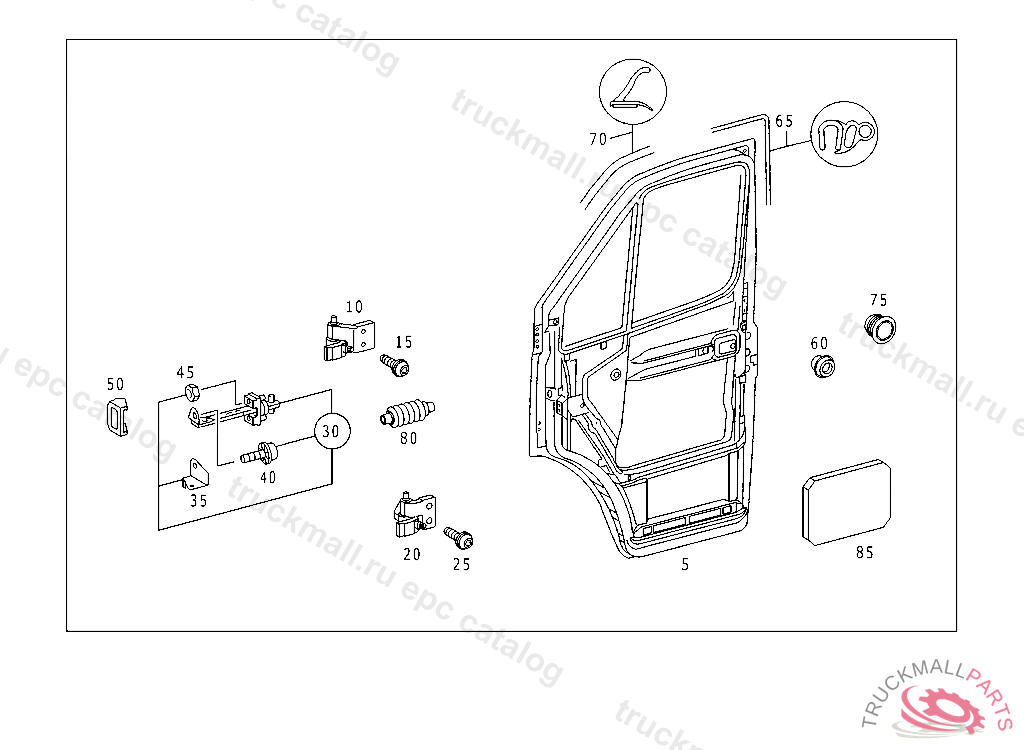

Поз.
Артикул
Описание
5
DOOR SHELL LEFT, TO BE ADAPTED DURING ASSEMBLY
5
DOOR SHELL RIGHT, TO BE ADAPTED DURING ASSEMBLY
10
HINGE RIGHT TOP
10
HINGE LEFT TOP
15
SCREW DOOR SLIDE MECHANISM TO DOOR
20
HINGE LEFT BOTTOM
20
HINGE RIGHT BOTTOM
20
HINGE LEFT BOTTOM
20
HINGE RIGHT BOTTOM
25
BOLT. SCREW HINGE TO BODY M8 X 25
30
DOOR CHECK LEFT
30
DOOR CHECK. SOOR CHECK, RIGHT
35
DOOR CHECK LEFT
35
DOOR CHECK. HOLDER RH RIGHT
40
SCREW HINGE TO DOOR M8 X 20
45
NUT OIL TANK TO BRACKET
45
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
50
SEAL DOOR STRAP AT A-PILLAR, RIGHT
60
EXPANSION PLUG
65
SEAL LEFT
70
SEAL CO-DRIVER'S DOOR AND SLIDING DOOR RIGHT
75
STOP PLUG. PLUG
80
HOSE PROTECTIVE HOSE
85
INSULATION DOORS
