Поз.
Артикул
Описание

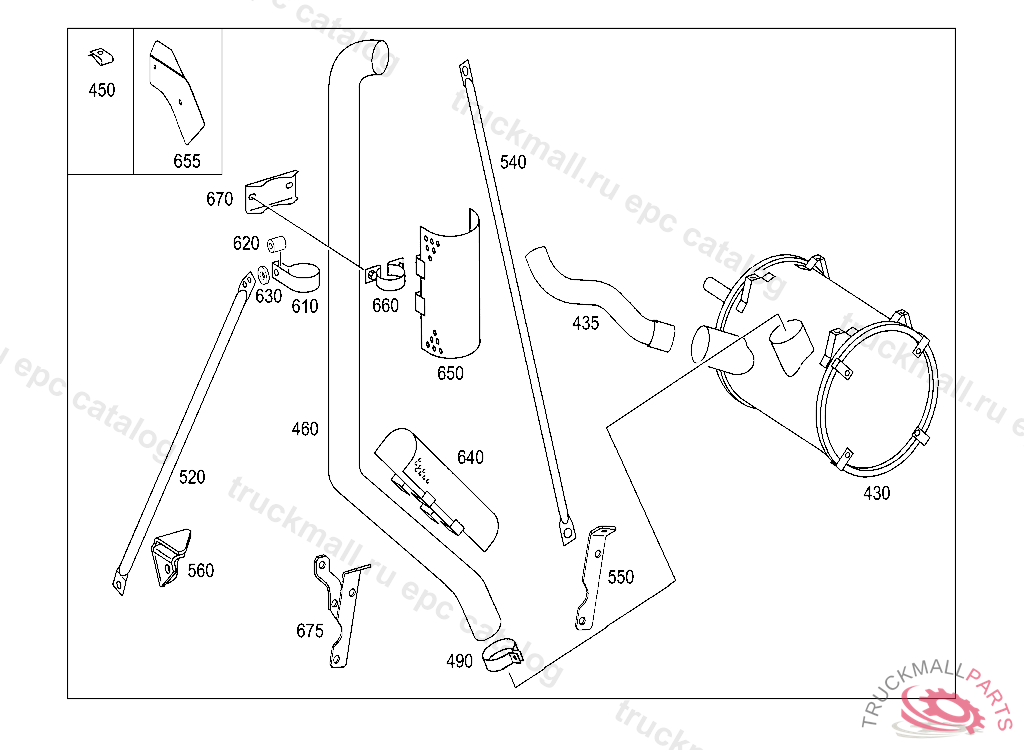

430
EXHAUST MUFFLER
430
EXHAUST MUFFLER
435
FRONT EXHAUST PIPE (CONNECTING PIPE)
450
NUT RETAINER PROTECTIVE PLATE TO EXHAUST MUFFLER
450
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
460
REAR EXHAUST PIPE VERTICAL TAIL PIPE BEHIND CAB
460
REAR EXHAUST PIPE VERTICAL TAIL PIPE BEHIND CAB
460
REAR EXHAUST PIPE VERTICAL TAIL PIPE BEHIND CAB
490
CLAMP EXHAUST PIPE TO MUFFLER 104.5 MM
520
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,FRONT
540
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
540
REINFORCEMENT EXHAUST PIPE TO SIDE MEMBER,REAR
550
BRACKET EXHAUST MUFFLER BRACING
560
BRACKET STRUT TO LEFT SIDE MEMBER
610
CLAMP STRUT TO EXHAUST PIPE
620
SPACER TUBE EXHAUST PIPE TO PROTECTIVE PLATE
620
BUSHING , Replaced By: A4403220150
620
BUSHING , Replaced By: A9703220250
620
SPACER TUBE AIR INTAKE
620
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
620
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
630
WASHER BRACKET TO SIDE MEMBER,5 703114
640
PROTECTIVE PLATE EXHAUST PIPE
650
PROTECTIVE PLATE (HEAT SHIELD)
655
PROTECTIVE PLATE EXHAUST PIPE
660
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE,TOP
670
BASE PLATE HEAT SHIELD TO TAILPIPE
675
BRACKET MOUNTING PARTS
