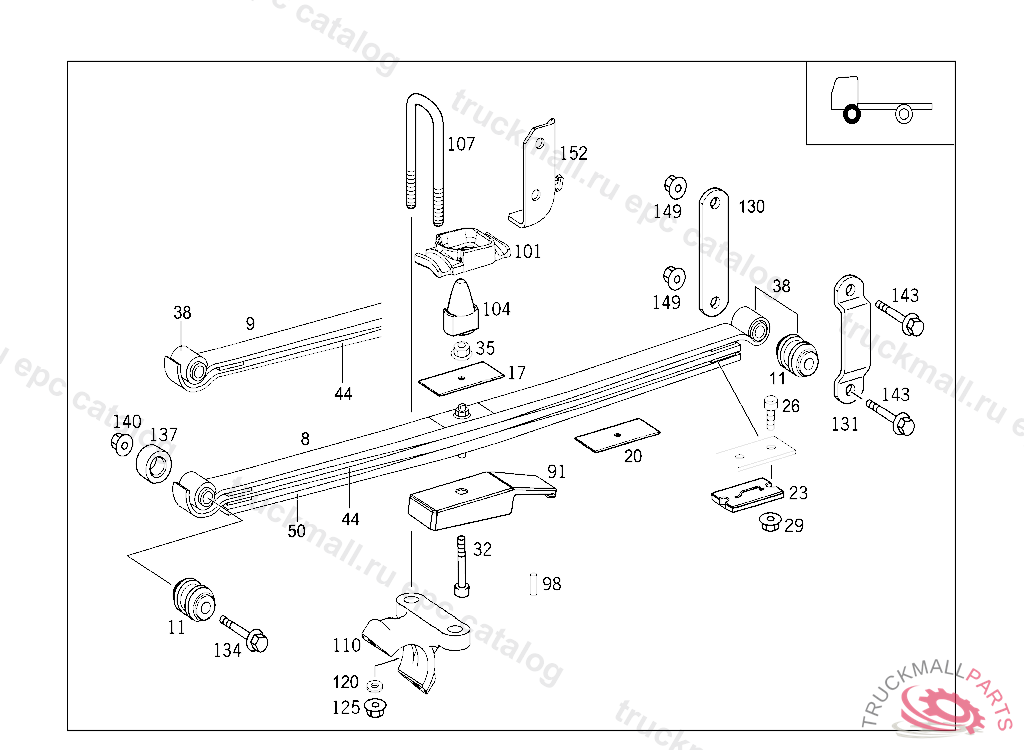

Поз.
Артикул
Описание
9
9
9
11
RUBBER MOUNTING
17
20
23
SHIM , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9703250184
23
23
SHIM , Replaced By: A9703250184
23
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
26
SCREW , Replaced By: A0019907212
26
SCREW SHIM TO LEAF SPRING
29
NUT BRACKET TO FIRE WALL
29
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
32
35
NUT BRACKET TO SIDE MEMBER
38
91
98
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 25 MM
98
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 25 MM, Replaced By: A9303230474
101
PLATE FRONT SPRINGS TO FRONT AXLE
104
HELPER SPRING FRONT SPRING STOP
107
107
107
107
107
107
110
120
WASHER ENGINE MOUNTING TO SUPPORTING ARM
125
HEXAGON NUT W COLLAR FRONT SPRINGS TO FRONT AXLE M18X1.5
125
NUT STABILIZER TO FRONT AXLE
130
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
130
131
131
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
134
HEXAGON HEAD BOLT FRONT SPRING TO FRONT SPRING FRONT BRACKET M18X1.5X160
137
140
NUT RETARDER HOUSING TO TRANSMISSION CASE
143
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M18X1.5X150
149
NUT RUBBER MOUNTING TO BRACKET
152
152
