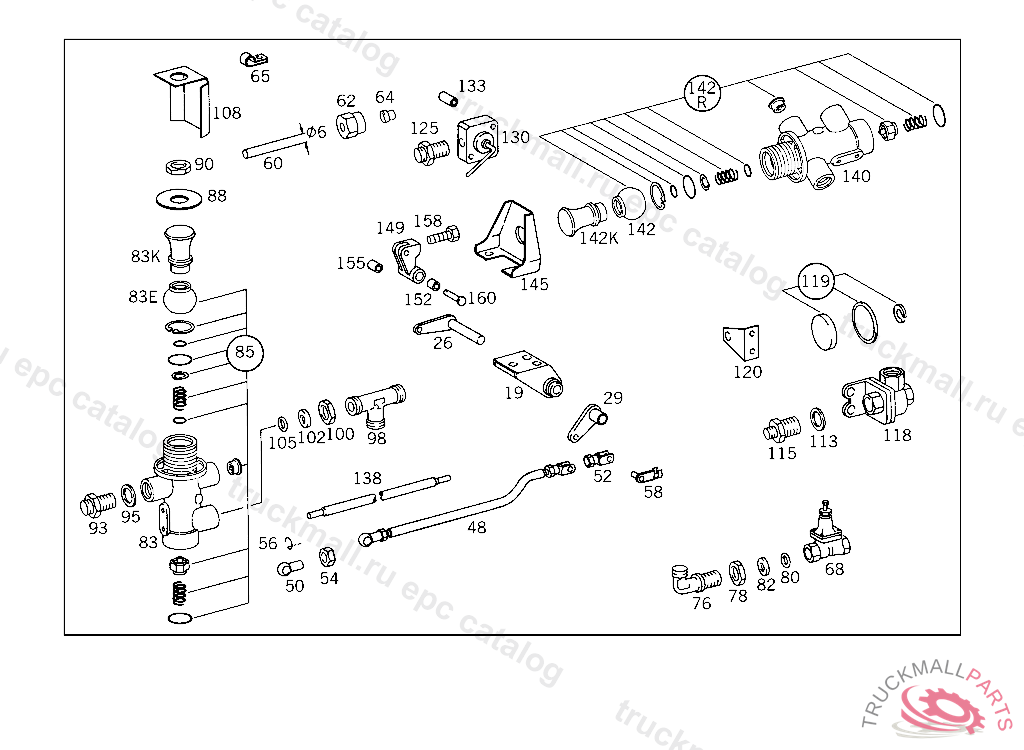

LAS 911 B - 353.114 - 43 EXHAUST BRAKE

19

BEARING

26

INTERMEDIATE SHAFT

29

LEVER

48

ROD

50

BALL SOCKET PULL ROD TO INTERMEDIATE LEVER

52

CLEVIS. YOKE SHIFTING CYLINDER TO SHIFT LEVER

54

NUT BALL PIVOT TO LEVER

56

CIRCLIP. SECURING CLIP BALL SOCKET TO ROD

58

PIN

999

WOOD SCREW BRACKET TO CAB FLOOR, 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709

999

SCREW , Replaced By: N304017008016

999

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

999

NUT

999

SPRING WASHER SHIFTING CYLINDER TO YOKE

999

LOCK WASHER CLAMP TO BRACKET AND TO PIPE
