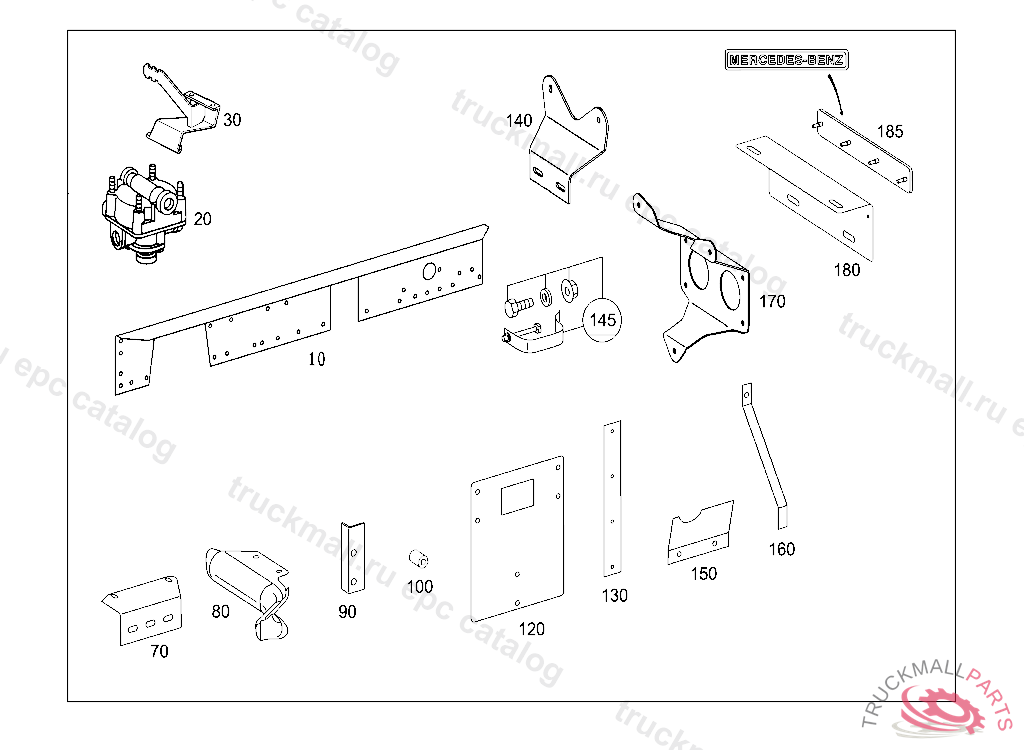

814 - 824 - 970.021 - 52 SHEET METAL,AIR INTAKE
Поз.
Артикул
Описание
10
ANGLE LEFT
10
ANGLE RIGHT
20
VALVE 3/2-WAY VALVE
30
BRACKET AT FRAME
70
SUPPORT AT FRAME
80
SUPPORTING RAIL FUEL TANK MOUNTING
90
SUPPORTING RAIL AT FRAME
100
SPACER TUBE MOUNTING PARTS
100
BUSHING , Replaced By: A4243110256
100
BUSHING , Replaced By: A4243110256
100
SPACER TUBE , Replaced By: A6629917340
100
SPACER TUBE MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
120
BRACKET AT FRAME
130
BRACKET AT FRAME
140
BRACKET TAIL LAMP
145
INSTALLATION KIT
150
BRACKET AT FRAME
160
BRACKET AT FRAME
170
BRACKET FASTEN VEHICLE JACK
180
CONSOLE NAME PLATE
180
CONSOLE FOR LICENSE PLATE HOLDER
185
NAME PLATE
