Поз.
Артикул
Описание

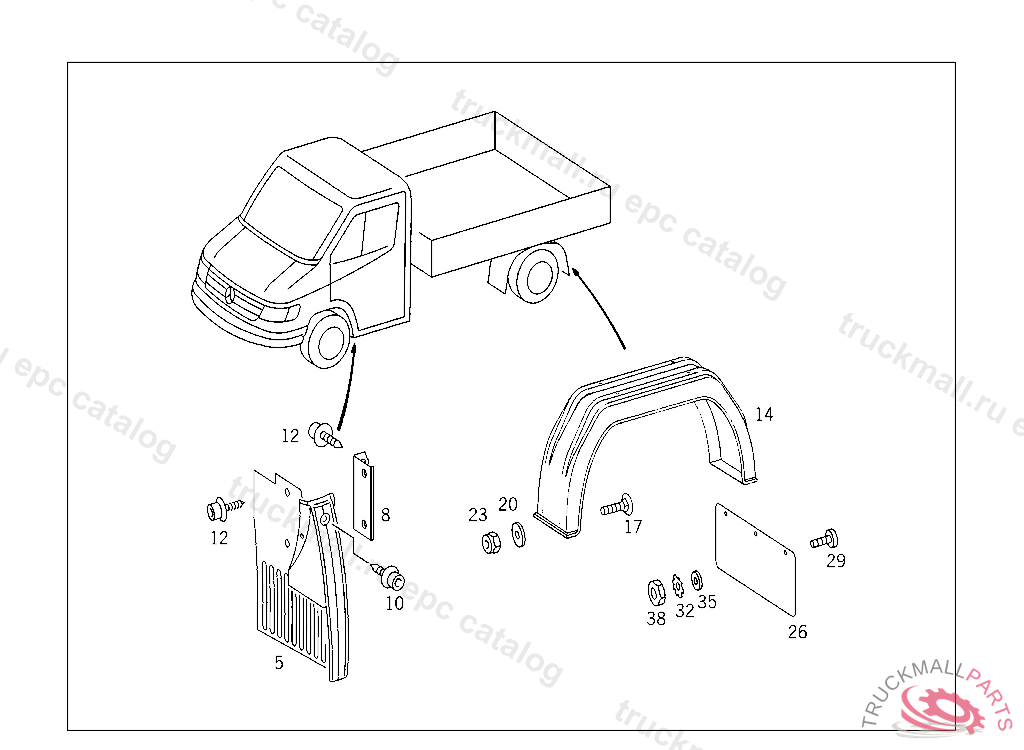

5
SPLASH GUARD FRONT LEFT
5
SPLASH GUARD FRONT RIGHT, Replaced By: A9018820905
8
BRACKET SPLASH GUARD
10
TAPPING SCREW BRACKET TO CAB REAR PANEL 6.3X16
10
SCREW , Replaced By: A2029840429
10
SCREW , Replaced By: N000000000825
12
SCREW BRACKET TO CAB
14
REAR FENDER CAB
17
SCREW FENDER TO BODY
20
WASHER COMPRESSED AIR LINE TO BRACKET
23
NUT HEATING PIPE TO BRACKET
26
SPLASH GUARD REAR LEFT AND RIGHT
29
SCREW JUNCTION BOX TO BRACKET
32
TOOTHED WASHER MASKED TAIL/STOP/BLINKER LAMP TO TAIL LAMP BRACKET
35
WASHER HIGH PRESSURE HOSE TO BRACKET
38
NUT
