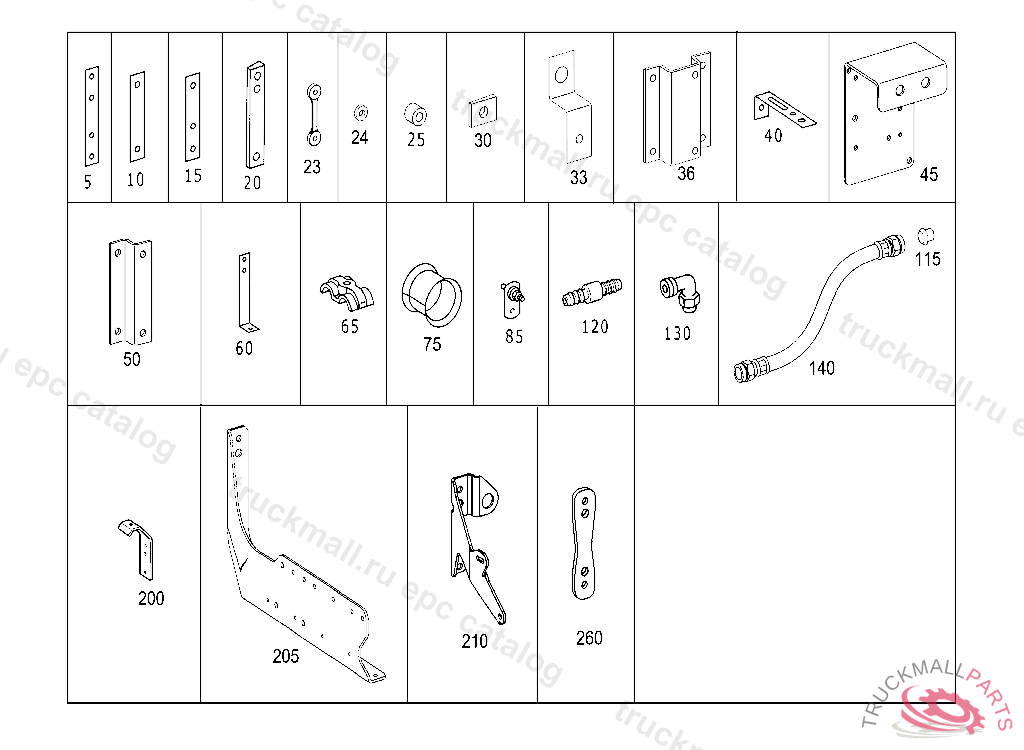

Поз.
Артикул
Описание
5
SHIM MOUNTING PARTS 10 MM,NO.1457IIIII I
5
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 10 MM
10
SHIM MOUNTING PARTS 10 MM
10
SHIM MOUNTING PARTS 10 MM
10
BRACKET BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 4 MM
10
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
10
SHIM MOUNTING PARTS 20MM
10
SHIM MOUNTING PARTS 8 MM
10
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 5 MM
15
SHIM MOUNTING PARTS 25MM
20
SHIM MOUNTING PARTS
23
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
23
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 13 MM
24
WASHER INTERMEDIATE SPEED STOP
25
SPACER TUBE MOUNTING PARTS
25
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
25
BUSHING , Replaced By: A4403220150
25
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
30
PAD BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
33
BRACKET BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
36
BRACKET BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
40
BRACKET LINE MOUNTING
45
BRACKET MOUNTING PARTS
50
SHIM MOUNTING PARTS 15MM
50
BRACKET BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
60
CONSOLE BATTERY CABLE TO SIDE MEMBER
65
CLAMPING PIECE BATTERY CABLE MOUNTING
65
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
65
CLAMP ELECTRIC CABLE MOUNTING
75
GROMMET LINE THRU FRAME
85
CONNECTOR GROUND CABLE TO BATTERY FRAME
115
SEAL CONE LINE MOUNTING
120
CONNECTOR
120
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 6 MM
120
CONNECTION FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 9MM/9MM
120
CONNECTOR REPAIR SIZE
130
ELBOW FITTING LINE CONNECTION
140
HOSE LINE AIR COMPRESSOR LINE
200
BRACKET CHOCK
205
SUPPORT UNDERRUN PROTECTION,RIGHT
210
BRACKET SIDE PROTECTION DEVICE
210
BRACKET SIDE PROTECTION DEVICE
260
PAD LATERAL UNDERRUN PROTECTION
