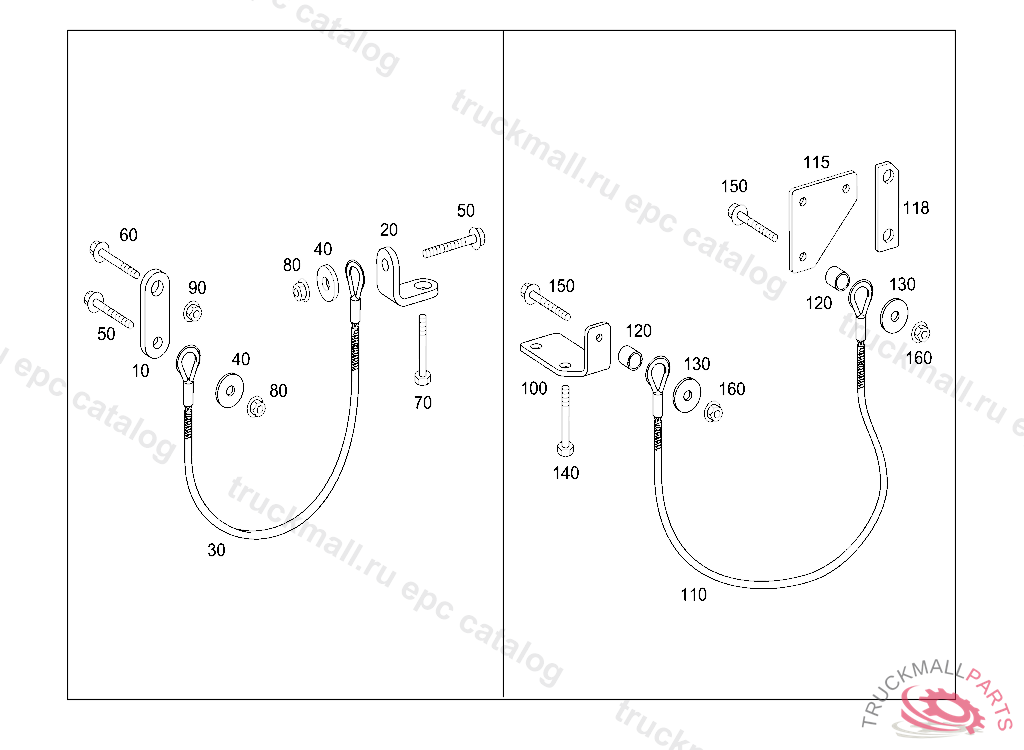

Поз.
Артикул
Описание
10
BRACKET RETAINING ROPE 9.5MM
20
BRACKET RETAINING ROPE
30
WIRE CABLE (RETAINING ROPE) 490MM
40
WASHER SUPPORT TO SIDE MEMBER
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
60
SCREW. HEXAGON HEAD BOLT CROSSMEMBER AND BEARING BRACKET TO FRAME M18X1.5X65
70
SCREW STEERING ARM TO STEERING KNUCKLE
80
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
90
NUT RETARDER HOUSING TO TRANSMISSION CASE
100
BRACKET RETAINING ROPE,RIGHT
100
BRACKET RETAINING ROPE,LEFT
110
WIRE CABLE BEHIND CAB 530MM
115
BRACKET MOUNTING MATERIAL
118
BASE MOUNTING MATERIAL
120
BUSHING MOUNTING MATERIAL, TO BE ADAPTED DURING ASSEMBLY
120
BUSHING MOUNTING MATERIAL, Replaced By: A3521441250
130
BUSHING MOUNTING MATERIAL, Replaced By: A9493230152
130
SPACER WASHER SHACKLE TO TORSION BAR AND TO CONSOLE
140
SCREW SHACKLE TO CONSOLE M 22X90
150
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
150
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
160
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
