Поз.
Артикул
Описание
5

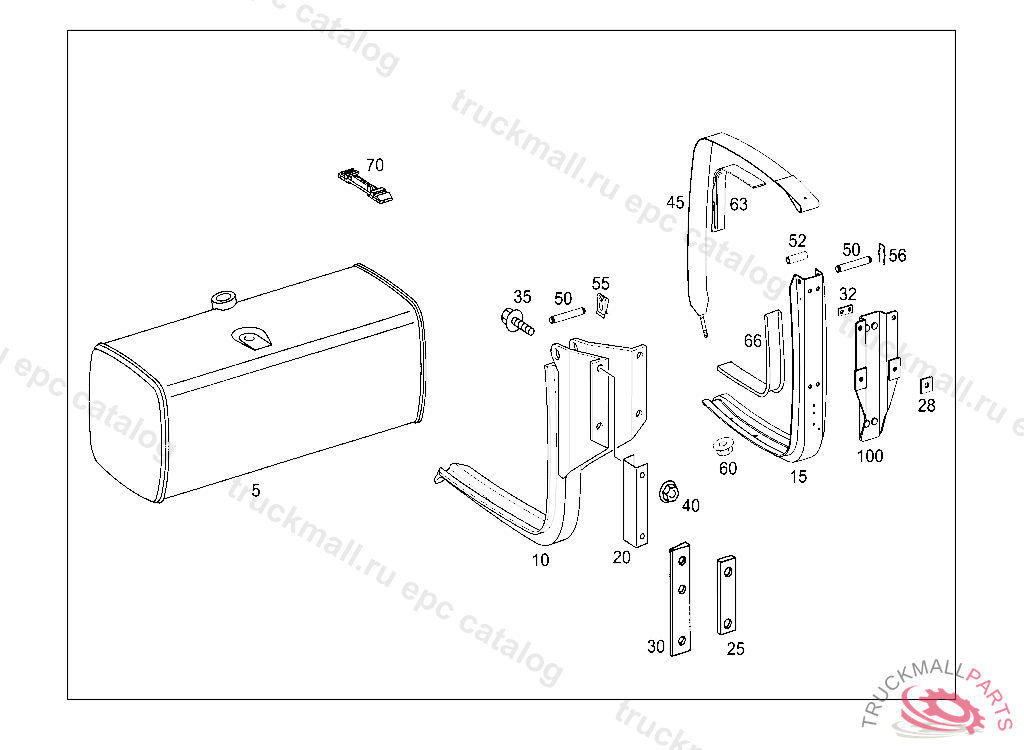

FUEL TANK TO BE MOUNTED ON THE RIGHT 470+230L
10
SUPPORT FUEL TANK TO FRAME
10
SUPPORT FRONT RIGHT TANK
15
CONSOLE FUEL TANK TO FRAME
20
SHIM MOUNTING PARTS
25
SHIM MOUNTING PARTS 20MM
28
SHIM MOUNTING PARTS 7MM
30
SHIM MOUNTING PARTS
32
SHIM FUEL TANK TO FRAME
35
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
35
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
35
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
35
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
35
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
35
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
40
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
45
STRAP FUEL TANK TO CONSOLE
45
STRAP FUEL TANK
50
CLAMPING SCREW STRAP TO SUPPORT
50
PIN STRAP TO SUPPORT
52
HOSE STRAP TO SUPPORT
55
CLIP RESERVOIR TO CAB FRONT PANEL
55
CLIP STRAP TO SUPPORT
56
CLIP STRAP TO SUPPORT
60
NUT STRAP TO SUPPORT M12X1.5
60
NUT STRAP TO SUPPORT M 12X1.5
63
PAD BRAKE ANCHOR 81.5MM
63
PAD STRAP 61 MM
66
PAD BRAKE ANCHOR 44.7MM
66
PAD BRAKE ANCHOR 53 MM
70
BRACKET FUEL LINE
100
BRACKET FUEL TANK TO FRAME
