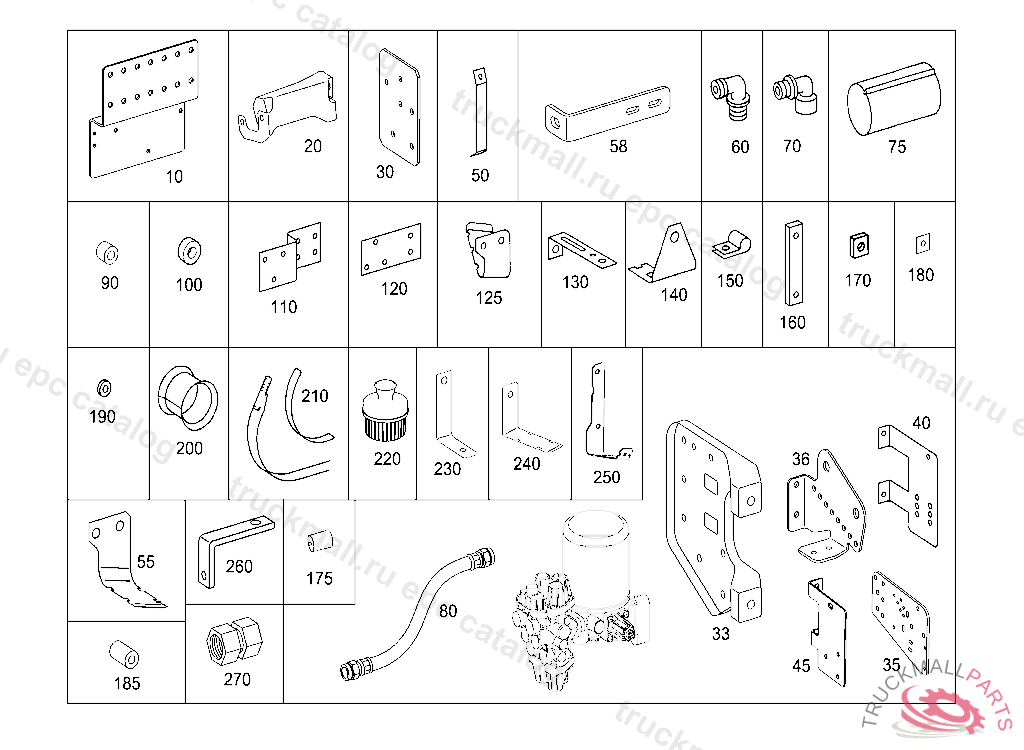

Поз.
Артикул
Описание
10
BRACKET MOUNTING PARTS
20
BRACKET MOUNTING PARTS
30
BRACKET MOUNTING PARTS 5MM
30
BRACKET MOUNTING PARTS 5MM
33
BRACKET AIR DEHYDRATOR
35
BRACKET MOUNTING PARTS 8MM
36
BRACKET AIR DEHYDRATOR TO SIDE PART, REAR
40
BRACKET MOUNTING PARTS
45
BRACKET AIR DEHYDRATOR
50
BRACKET MOUNTING PARTS
50
BRACKET MOUNTING PARTS
55
BRACKET MOUNTING PARTS
58
BRACKET LINE MOUNTING, INO.1457 IIII I
60
ELBOW FITTING LINE CONNECTION
70
ELBOW FITTING LINE CONNECTION
75
HOSE (PROTECTIVE HOSE), TO BE ORDERED ONLY FROM MESSRS FA.ZIPPERTECHNIK GMBH NEU-ISENBURG ORDER BY THE METER
75
HOSE (PROTECTIVE HOSE), Replaced By: A0008210497
80
HOSE LINE AIR COMPRESSOR LINE
90
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
90
BUSHING , Replaced By: A4403220150
90
BUSHING , Replaced By: A6624750850
90
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
100
BUSHING , Replaced By: A9703220250
100
BUSHING MOUNTING PARTS, Replaced By: A3142420151
100
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
100
SPACER WASHER TORSION BAR TO BEARING BRACKET,5 904661
100
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
110
BRACKET MOUNTING PARTS
120
BRACKET MOUNTING PARTS
125
BRACKET LINE MOUNTING
130
BRACKET LINE MOUNTING
130
BRACKET LINE MOUNTING
140
BRACKET LINE MOUNTING
140
BRACKET LINE MOUNTING
150
PIPE CLAMP LINE MOUNTING 15-20MM, Replaced By: A0019958002
150
PIPE CLAMP LINE MOUNTING 15-20MM
150
CLAMP LINE MOUNTING
160
SHIM FUEL TANK TO FRAME 3MM
170
SHIM MOUNTING PARTS 7MM
175
LOCKING CONE EXHAUST SYSTEM
180
BASE MOUNTING PARTS 10MM
185
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
185
SPACER TUBE , Replaced By: A4403220150
190
WASHER BRACKET TO LEFT SIDE MEMBER
200
GROMMET LINE THRU FRAME
210
ADHESIVE TAPE60 MM, ORDER BY THE METER
220
MUFFLER AIR DEHYDRATOR,CONNECTION: "30"
230
BRACKET MOUNTING PARTS
240
BRACKET MOUNTING PARTS
250
BRACKET MOUNTING PARTS
260
BRACKET LINE MOUNTING
270
FITTING LINE CONNECTIONS
