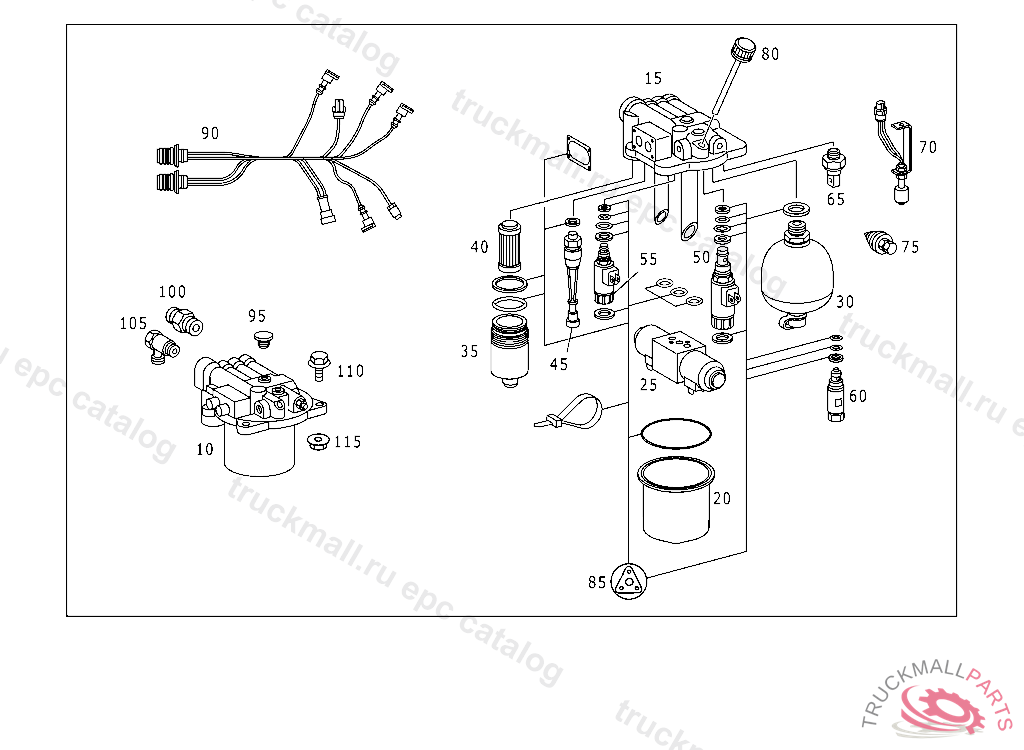

Поз.
Артикул
Описание
10
VALVE VALVE BLOCK EHZ
15
VALVE CONTROL UNIT
20
TANK
25
VALVE 4/3-WAY VALVE
30
DIAPHRAGM ACCUMULATOR55 BAR
35
AIR CLEANER
40
FILTER OIL
45
HOSE OIL
50
VALVEWSEY 10120 - 04X
55
VALVE2SV5E1V . X
60
VALVEDB4E - 01X -200 F 200
65
SENDER UNIT
70
SWITCH
75
SCREW (SHUT-OFF VALVE)
80
OIL DIPSTICK
85
GASKET GASKET KIT
90
ELECTRIC CABLE CABLE HARNESS
95
COVER PLUG. PLUG TO LOCK VALVE BLOCK
100
FITTING VALVE BLOCK
100
FITTING , Replaced By: A0039901368
105
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
105
THREADED CONNECTION SUCTION LINE TO OIL PUMP
110
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
115
NUT BRACKET TO SIDE MEMBER M12X1.5
999
CONNECTING PLAQUE CONTROL BLOCK
