Поз.
Артикул
Описание

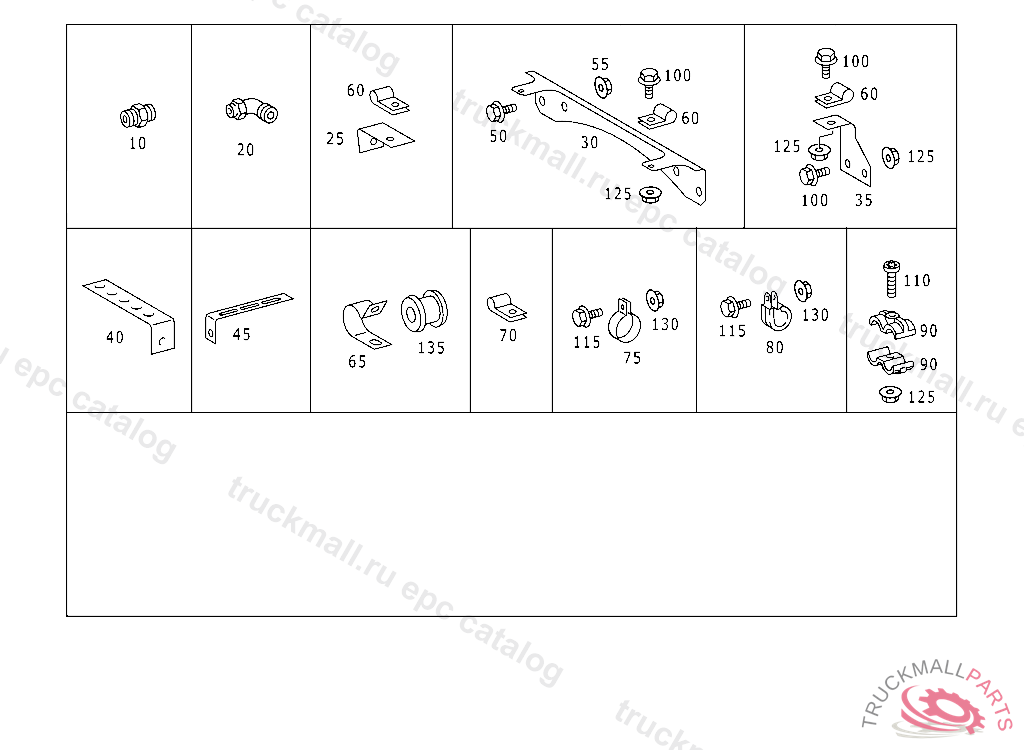

10
CONNECTION FITTING LINE CONNECTIONS
10
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
10
CONNECTION FITTING , Replaced By: N003902018002
10
FITTING LINE CONNECTIONS
20
FITTING OIL LINE CONNECTION
25
BRACKET LINE MOUNTING, SIMPLE PART-PLEASE HAVE SHOP MADE
30
BRACKET MOUNTING PARTS
35
BRACKET LINE MOUNTING
40
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
45
BRACKET LINE MOUNTING
45
BRACKET OIL LINE MOUNTING
50
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
55
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
60
CLAMP LINE MOUNTING
65
CLAMP LINE MOUNTING
70
CLAMP DELIVERY AND SUCTION LINES TO STEERING
75
CLAMP , Replaced By: N000000001641
80
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
90
CLAMP ELECTRIC CABLE MOUNTING
100
SCREW BRACKET AND CLAMP M6X20
100
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
110
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
110
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
110
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
115
SCREW CLAMP ON BRACKET
125
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
130
NUT HORN TO BRACKET M8
135
GROMMET LINE MOUNTING
999
FITTING LINE CONNECTIONS
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0005516456
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
