Поз.
Артикул
Описание

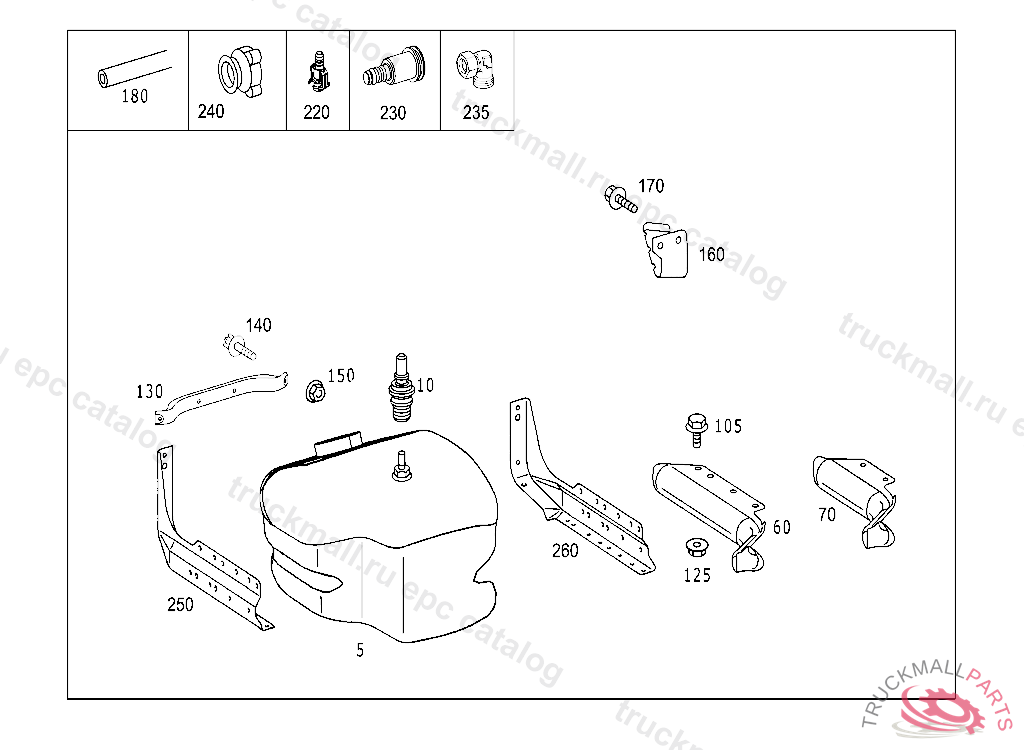

5
FUEL TANK PLASTIC 105 L
10
FITTING AT TANK
60
BEARING RAIL. SUPPORTING RAIL RIGHT FUEL TANK
60
BEARING RAIL. SUPPORTING RAIL LEFT FUEL TANK
70
SUPPORTING RAIL FUEL TANK MOUNTING
105
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
125
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
CLAMP FUEL TANK MOUNTING
140
SCREW , Replaced By: N910143008002
140
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
150
NUT HORN TO BRACKET M8
160
BRACKET LINE MOUNTING
170
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
170
SCREW , Replaced By: N910143008002
180
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
220
CONNECTOR LINE CONNECTION
220
COUPLING. CONNECTOR , Replaced By: A0004762524, +001A0004762124
220
COUPLING , Replaced By: A0004762524, +001A0004762124
230
CONNECTOR LINE CONNECTION 10MM
235
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
235
FITTING FROM PUMP TO CYLINDER
240
CAP LINE CONNECTION
250
SUPPORT UNDERRUN PROTECTION,LEFT
260
SUPPORT UNDERRUN PROTECTION,RIGHT
