Поз.
Артикул
Описание

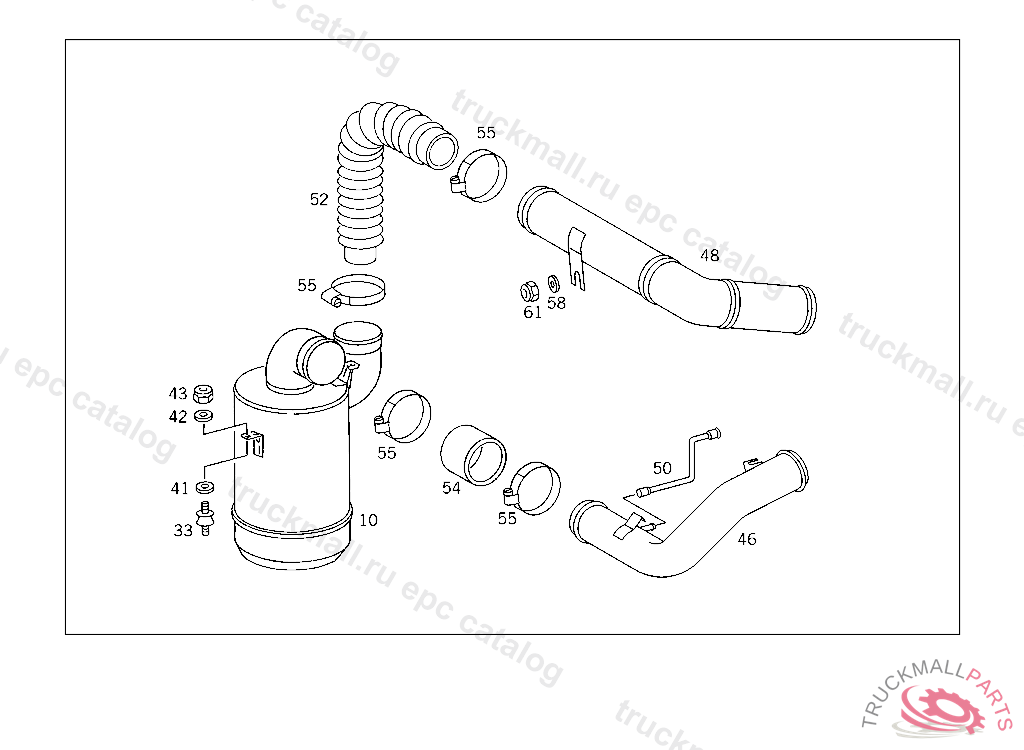

10
AIR CLEANER
33
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
41
WASHER , Replaced By: N009021008213
41
WASHER BRACKET TO LEFT SIDE MEMBER
42
WASHER EXHAUST MUFFLER TO STRAP
42
WASHER , Replaced By: N000125008443
43
NUT , Replaced By: N913004008001
46
AIR INTAKE PIPE FROM AIR INTAKE PIPE TO AIR CLEANER,086181
46
AIR INTAKE PIPE , Replaced By: A3575202101
48
AIR INTAKE PIPE , Replaced By: A3575281401
48
AIR INTAKE PIPE AIR CLEANER
54
HOSE INTAKE PIPE TO AIR CLEANER
55
CLAMP , Replaced By: N000000000678
55
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
55
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
58
WASHER , Replaced By: N000125008443
58
WASHER EXHAUST MUFFLER TO STRAP
61
NUT , Replaced By: N913004008001
999
GASKET , NOT USED
