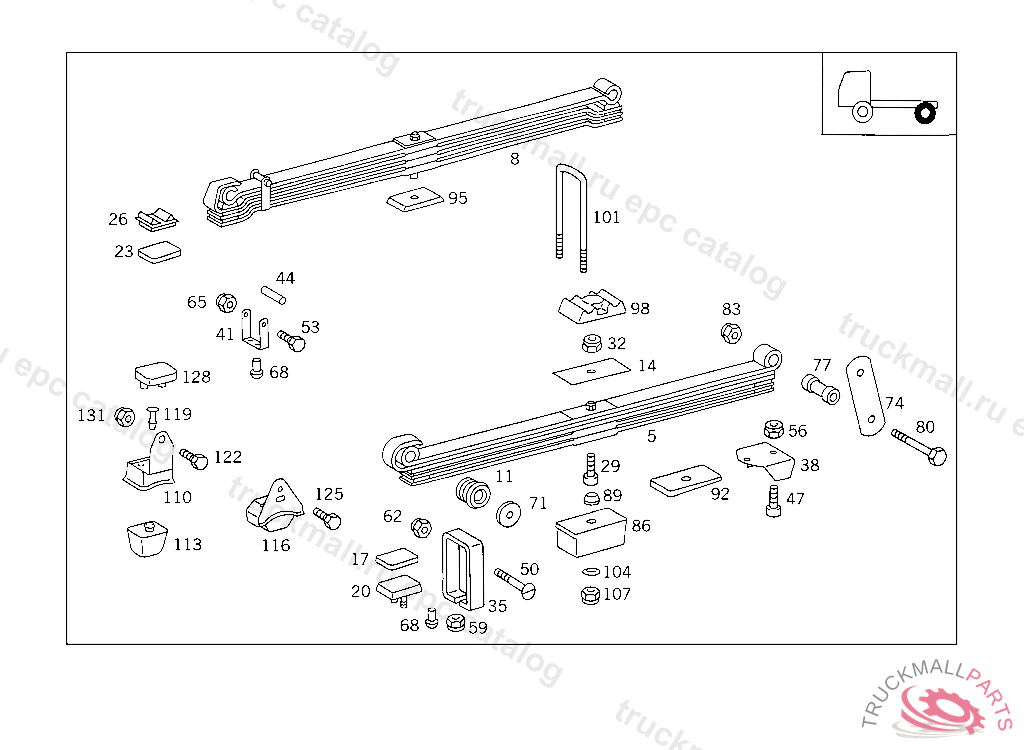

Поз.
Артикул
Описание
5
REAR SPRING (SUPPORTING SPRING),5 LEAVES
11
BUSHING SPRING EYE,FRONT AND REAR
11
BUSHING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6753200650
11
BUSHING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6753200650
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM , Replaced By: A9703210184
20
SHIM BETWEEN THE SPRING LEAVES
20
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
20
RUBBER BUFFER BETWEEN THE SPRING LEAVES
20
SHIM , Replaced By: A9703250184
20
SHIM , Replaced By: A9703250184
20
RUBBER BUFFER BETWEEN THE SPRING LEAVES, Replaced By: A3753200844
20
RUBBER BUFFER BETWEEN THE SPRING LEAVES
20
SHIM , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9703250184
23
SHIM BETWEEN THE SPRING LEAVES
29
SPRING BOLT
32
HEXAGON NUT. NUT SPRING BOLT
32
NUT , Replaced By: N910113012005
38
SPRING CLAMP
47
SCREW RUBBER BUFFER TO SPRING LEAF
56
NUT , Replaced By: N913002006009
56
NUT OIL TANK TO BRACKET
68
RIVET SPRING CLAMP TO SPRING LEAF
71
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
74
SHACKLE (SPRING SHACKLE)
77
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
80
SCREW , Replaced By: N000960018072
80
SCREW VIBRATION ABSORBER TO CONSOLE
83
NUT , Replaced By: N910113018004
83
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
98
PLATE REAR SPRING TO REAR AXLE,K 028585
98
PLATE REAR SPRING TO REAR AXLE
101
U-BOLT REAR SPRING TO REAR AXLE 380 MM,K 028585
101
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510325, +001A6793250031
104
WASHER FRONT SPRINGS TO FRONT AXLE
107
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
116
RUBBER BUFFER STOP BUFFER TO FRAME
125
SCREW REAR EXHAUST PIPE TO MUFFLER
131
NUT STRAP TO BRACKET
